FUSION H-SERIES WINGS MKII

Description

The Fusion H-Series Wings MKII represent the pinnacle of efficiency, speed, and progression. Thanks to their ultra-thin profile and unparalleled torsional rigidity (PMI core and Pre-Preg carbon), they guarantee effortless pumping and gliding whether you're wing foiling, kite foiling, or prone foiling. The completely redesigned tips allow for confident maneuvers even in turns: the foils re-engage smoothly without cavitation (SINTEF research).
The ergonomic connection between the fuselage and the mast maximizes the system's rigidity while remaining easy to assemble. The high aspect ratio offers great top speed but also superior maneuverability compared to traditional foils. The through-bolt brass connection increases rigidity at the slice/core connection, providing a direct feel, especially with larger wing surfaces. All H-Series foils are fully modular and compatible with X-Series and H-Series stabilizers and front wings.

Technical features

• HIGH ASPECT Design
• PMI Core and Pre Preg Carbon Sheets
• Brass through bolt for maximum torsional rigidity
• Tapered fuselage-to-mast connection for strength and quick assembly
• Fully modular and compatible with all CAB Fusion front wings and stabilizers (X-Series & H-Series)

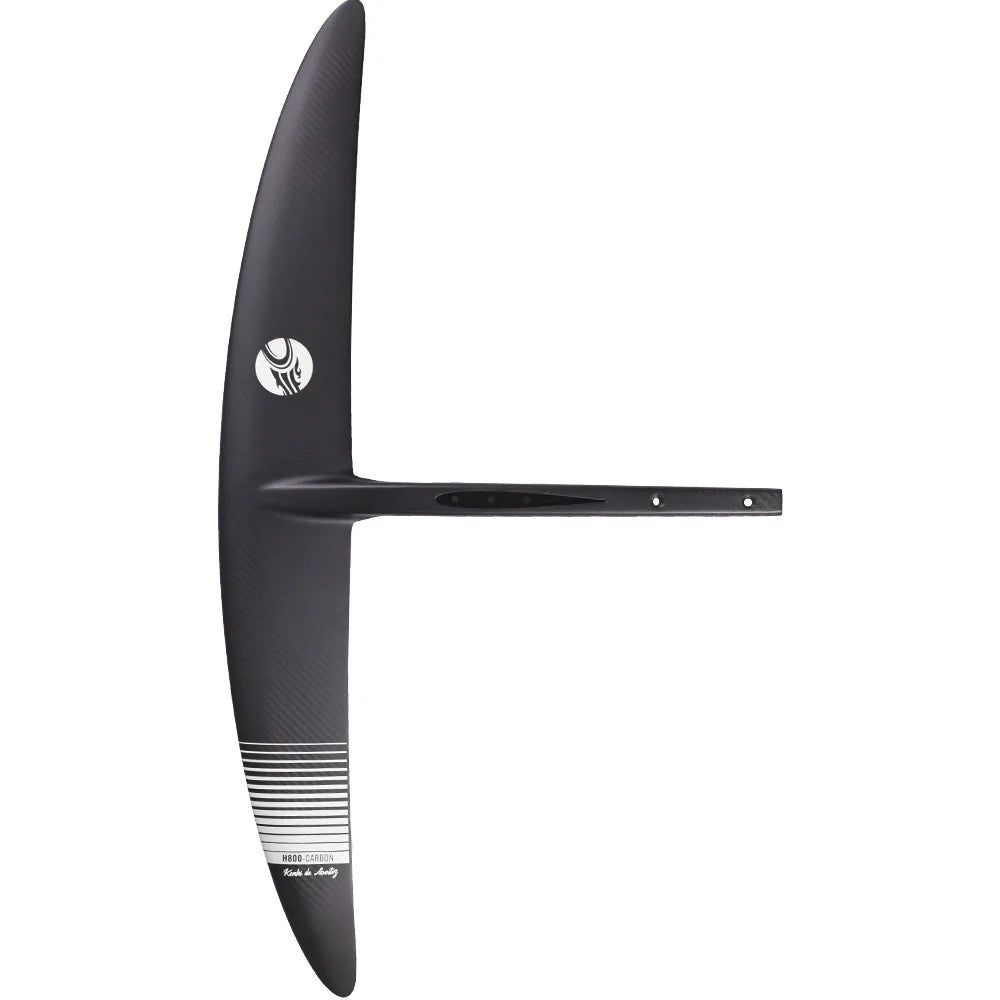

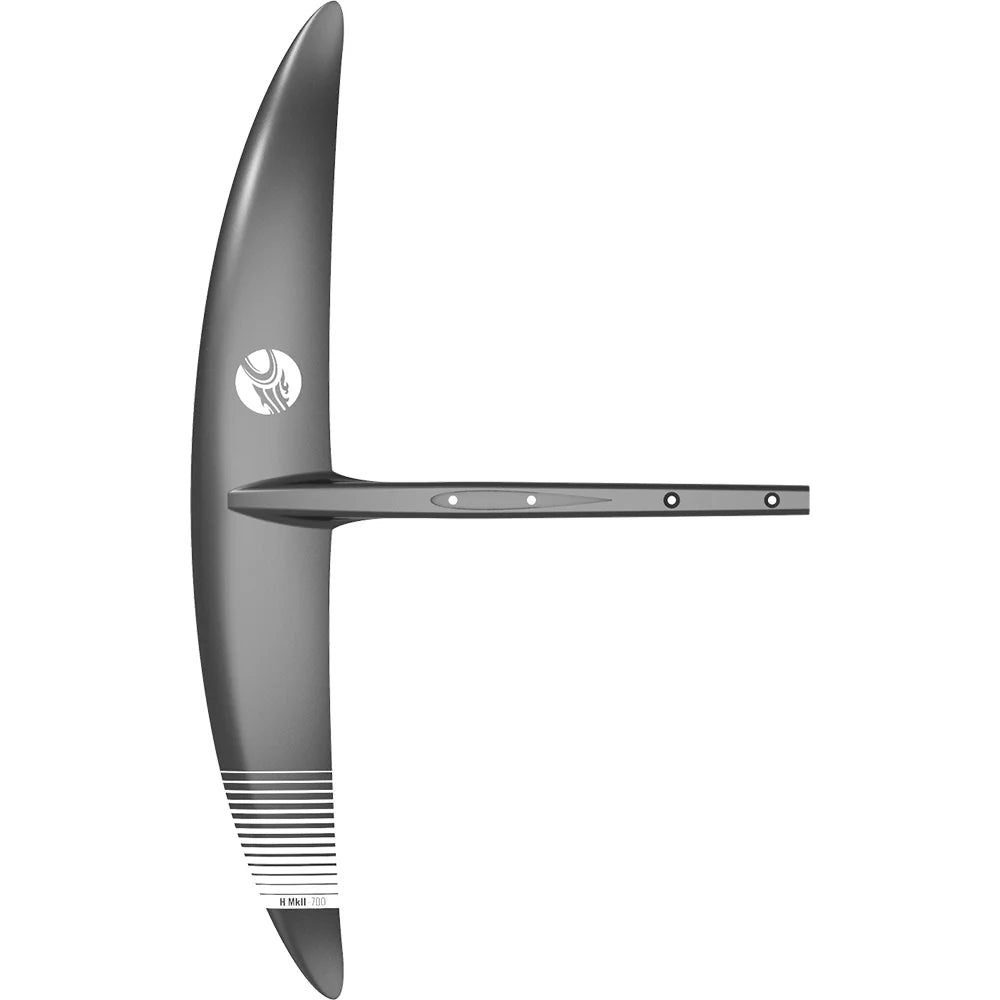

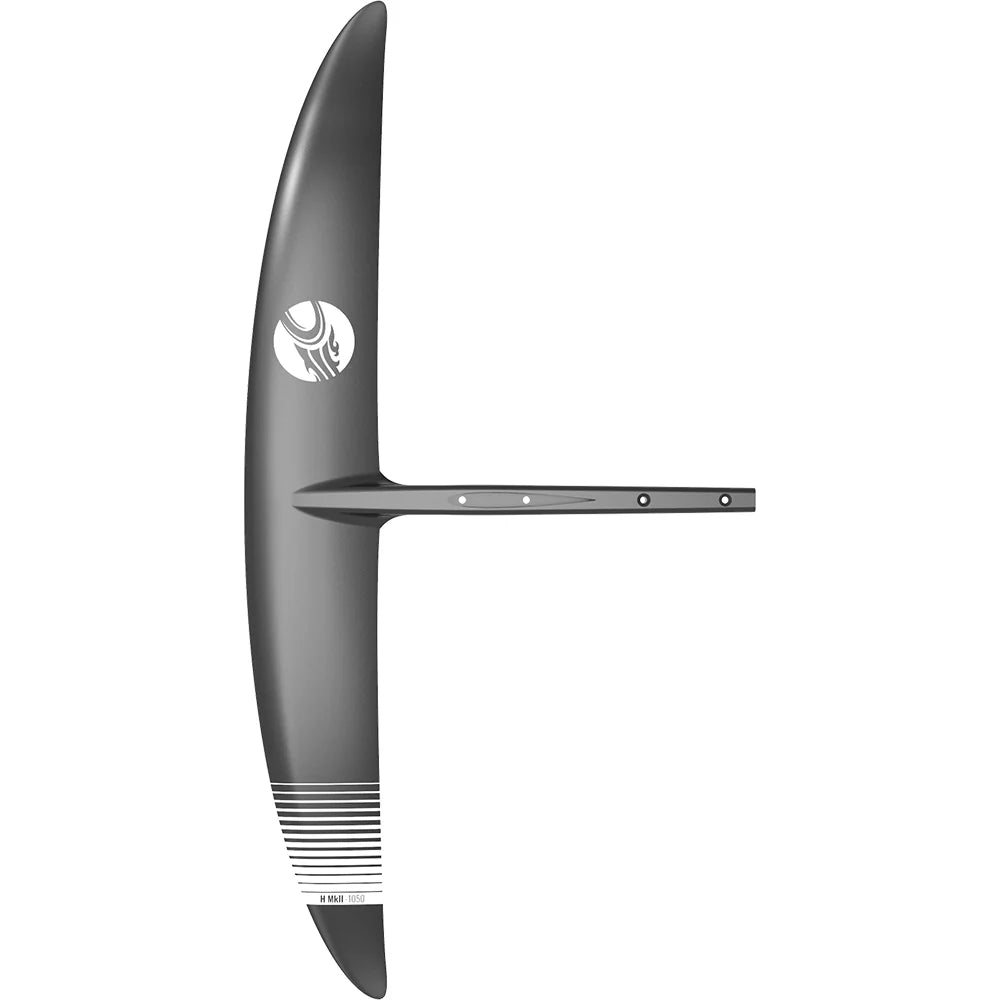

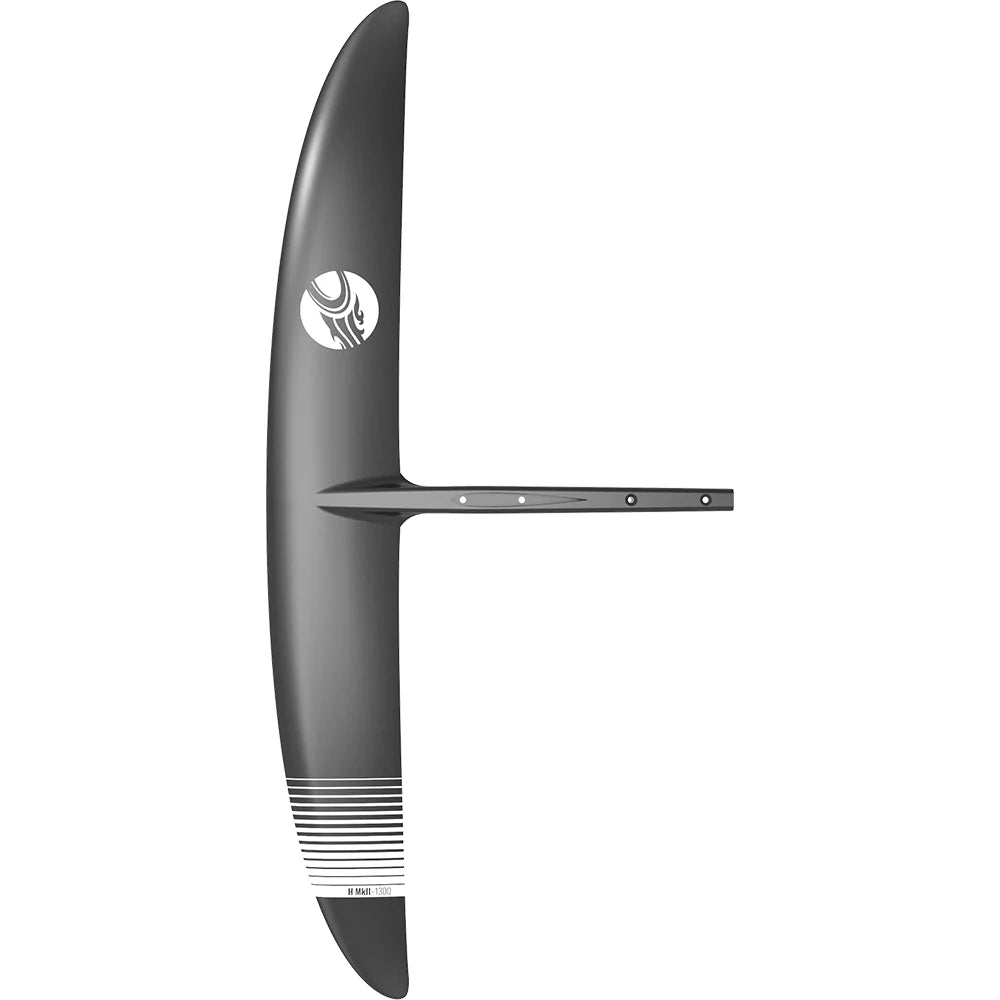

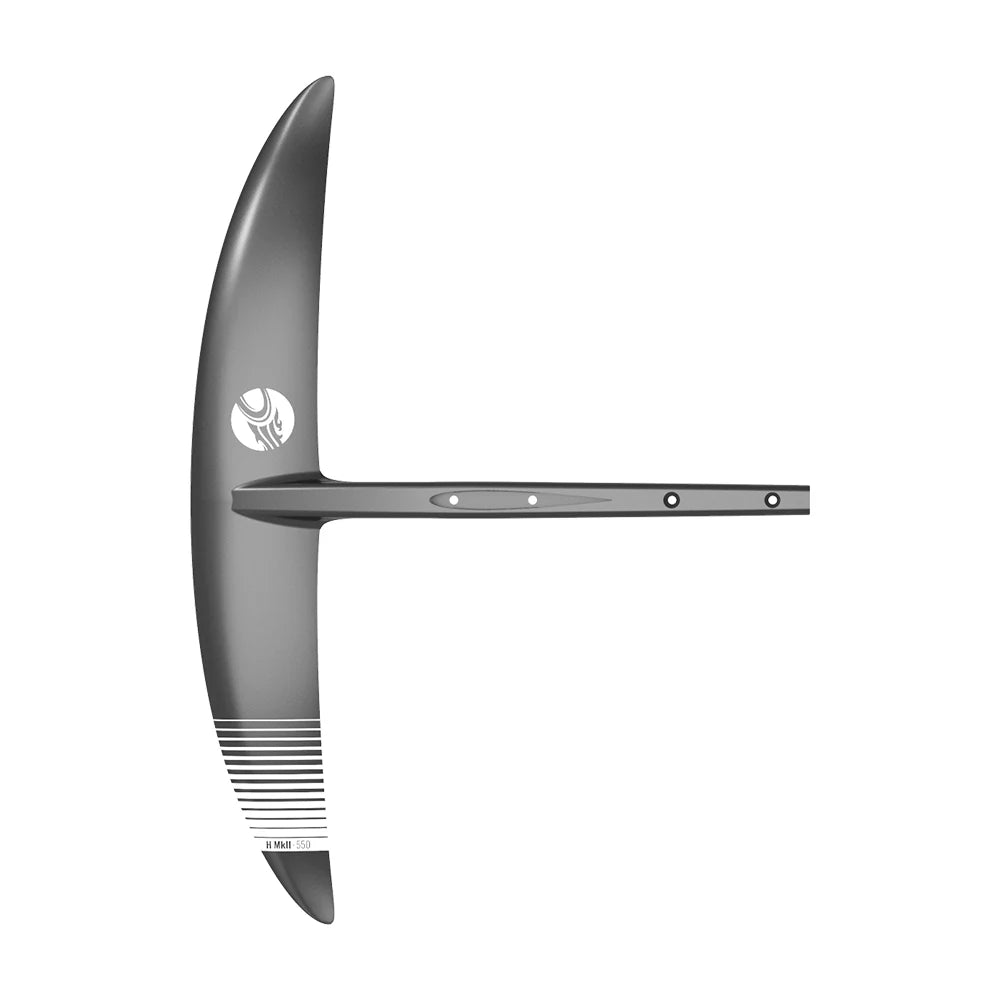

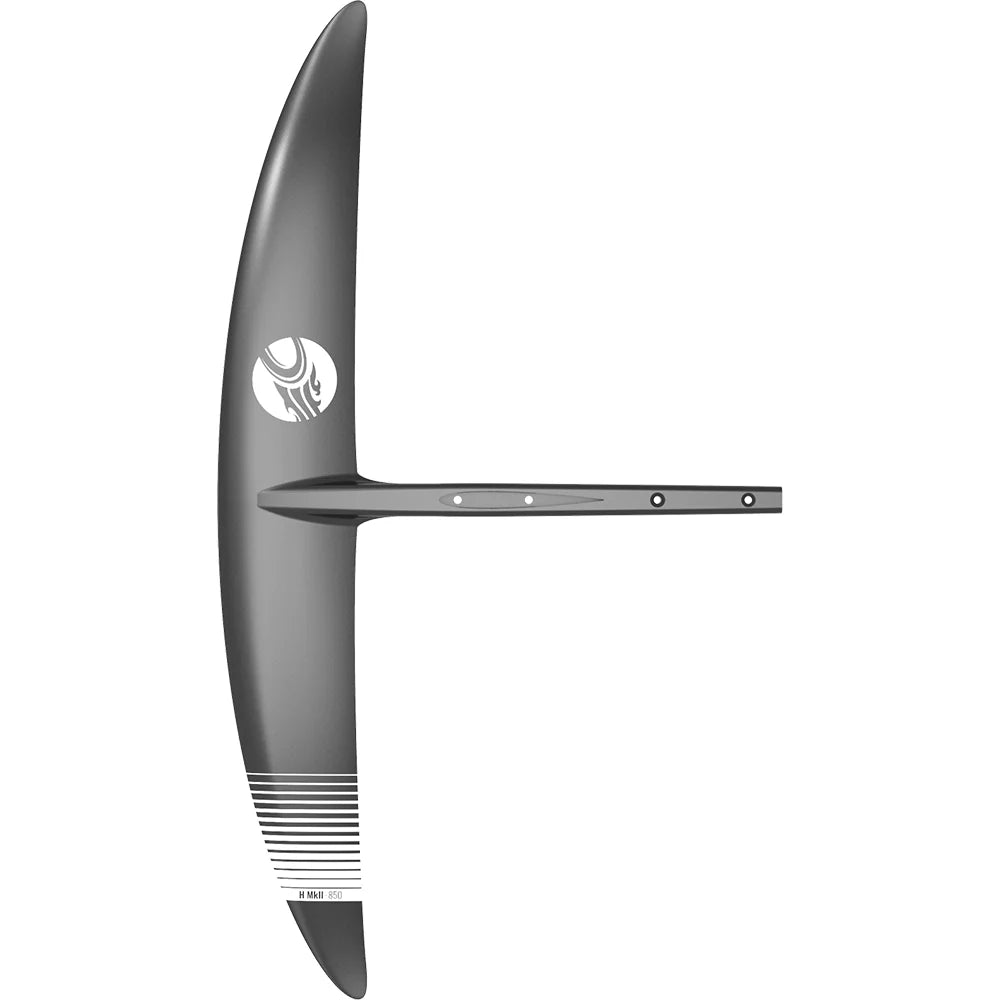

• Available sizes: H550cm², H700cm², H800cm², H850cm², H1000cm², H1050cm², H1300cm²
• SKU: K3FWHFWNG055XXX
• Ultra-thin and lightweight profile
• Tips designed for progressive release/reengagement without cavitation

Foil Guide – A Guide to Choosing the Right Size

• Small (H550-800): For advanced riders, high speeds, maximum responsiveness both kite and prone foiling.
• Intermediate (H850-H1050): Ideal balance between glide, carving, pumping and great versatility (wing/prone/kite).
• Large (H1300): For light wind, heavy riders or those who want prolonged pumping/powerful upwind (wing/surf).

Foil Guide – Frequently Asked Questions (Q&A)

What size is ideal for a beginner?

A middle ground (H850-H1050) is stable and versatile for learning in many conditions.

When do you need an H1300?

When the wind is very light or the rider weighs over 80kg, it guarantees lift and easy pumping.

Small sizes, for which disciplines?

High-tech kite and prone foil, ideal for those who want extreme maneuverability and high speed.

Is the system really modular?

Yes, you can freely combine X-Series/H-Series front wings and stabilizers.

Build Guide – Step-by-Step Assembly

1. Choose your front wing: Decide on the surface area (H550-1300) based on your weight, level and discipline.
2. Assembly: Align the wing and fuselage well, insert and tighten the brass through bolt.
3. Stabilizer: Mount the one you choose: all Cabrinha X/H-Series stabilizers are compatible.
4. Mast: Connects the mast to the fuselage (tapered connection, easy and solid).
5. Final check: Check all screws are tight and free of play before use.

Build Guide – Q&A

Does any special maintenance need to be done?

Yes, rinse with fresh water and check the screws after use at sea.

What tools should I use?

Torx or hex keys included in the Cabrinha kit.

Can I swap freely between X-Series and H-Series?

Yes, all front wings and stabilizers are cross-compatible.

Where can I find manuals and support?

Please consult the website or the manual included in the kit.
