Mantaray Universal Foil Set Y30
Couldn't load pickup availability
Universal Mantaray Foil Set Y30
The Universal Mantaray Foil Set Y30 is designed for those who want to push hard: fast, aggressive riding with plenty of response when changing direction. The mid-aspect profile with a section optimized for speed and control, combined with the “rondure” design, offers high maneuverability , a very fast roll rate and excellent ventilation recovery when the wing breaks the surface.

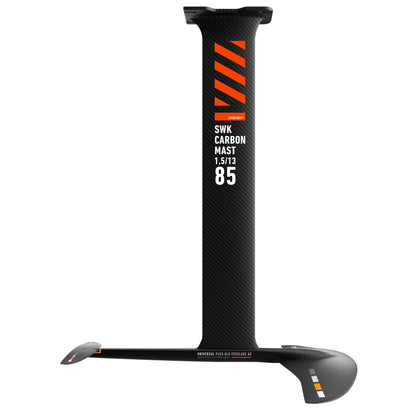

The set includes the SWK Carbon Mast , built in 100% M40 Hi-Modulus carbon with UD and biaxial prepreg fibers: result = ultra rigid connection (zero flex and torsion) for maximum control even in the “hardest” tricks.
Main features
- Construction : 100% M40 Hi-Modulus carbon
- UD + Biax Prepreg : extremely high rigidity (zero flex / torsion)
- Explosive pop and responsiveness
- Fast roll rate for carving and changes of direction
- Fluid ventilation recovery when you break the surface
Recommended / Components
- Fuselage : Universal Plus ALU
- Front Wing : Universal Manta Ray (Full Carbon)
- Rear Wing : Flowarch Adjustable (Full Carbon)
Reference: 30UNMANSET
Available set specifications
September 1350
- Front wing: Universal Manta Ray 1350 – Full Carbon – 93 cm – 1350 cm² – A/R 6.7
- Rear wing: Flowarch Adj 220 – Full Carbon – 40 cm – 220 cm² – A/R 6.6
- Mast: SWK Carbon Mast 85 / 1.5 / 13 – Full Carbon – 85 cm – max chord 13 cm – max thickness 15 mm
- Fuselage: Universal Plus ALU Fuselage 63 – Alu – 63 cm
- Shims: 0° / 0.75° / 1.5°
Set 1050
Art. code: 30UNMANSET_00_1084
- Front wing: Universal Manta Ray 1050 – Full Carbon – 84 cm – 1050 cm² – A/R 6.7
- Rear wing: Flowarch Adj 190 – Full Carbon – 36 cm – 190 cm² – A/R 6.7
- Mast: SWK Carbon Mast 85 / 1.5 / 13 – Full Carbon – 85 cm – max chord 13 cm – max thickness 15 mm
- Fuselage: Universal Plus ALU Fuselage 63 – Alu – 63 cm
- Shims: 0° / 0.75° / 1.5°
Set 850
Art. code: 30UNMANSET_00_8576
- Front wing: Universal Manta Ray 850 – Full Carbon – 76 cm – 850 cm² – A/R 6.7
- Rear wing: Flowarch Adj 170 – Full Carbon – 33 cm – 170 cm² – A/R 6.5
- Mast: SWK Carbon Mast 85 / 1.5 / 13 – Full Carbon – 85 cm – max chord 13 cm – max thickness 15 mm
- Fuselage: Universal Plus ALU Fuselage 60 – Alu – 60 cm
- Shims: 0° / 0.75° / 1.5°
Q&A
What level is the Mantaray Y30 designed for?
What is the difference between 1350, 1050 and 850?
1050 = “fast” allrounder with great handling.
850 = more responsive and sporty, ideal for stronger winds and for expert riders.
What does “ventilation recovery” mean?
Is the SWK mast in M40 really stiffer?
Are shims included? What are they for?
Is it more suitable for wing or kite?
*Technical data and sensations depend on trim, stabilizer, shims, rider level and conditions (wind/wave/current).
