REAR FUSELAGE REVERSIBLE
Couldn't load pickup availability

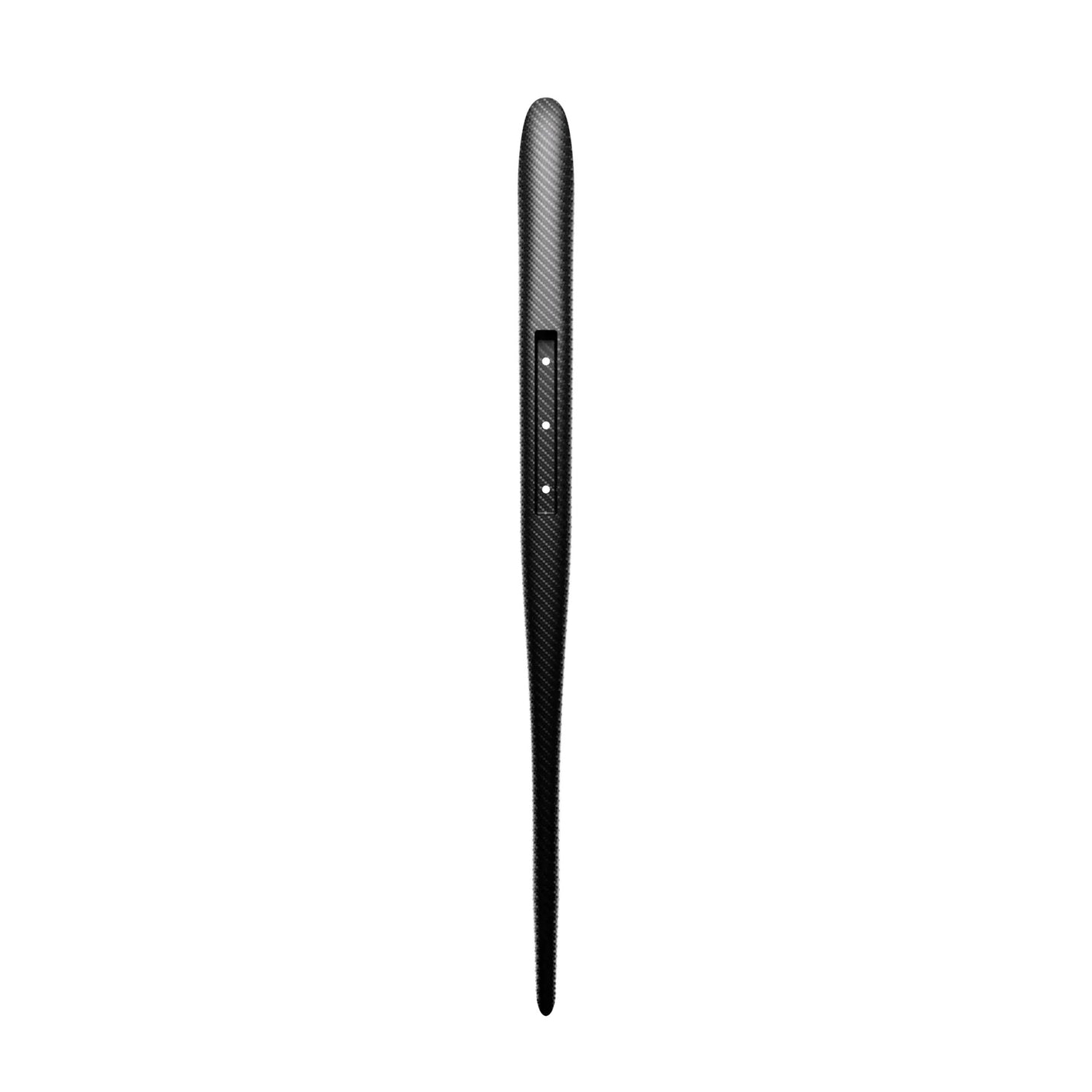

Reversible Fuselage
The Reversible Fuselage is a versatile rear fuselage, designed to offer maximum compatibility with different tails and setups, thanks to the reversible top/bottom mounting and multiple stabilizer attachment points.
Main features
- Reversible design: can be mounted either top mount or bottom mount, depending on the tail used.
- Extended Compatibility: Can be used with the entire AK foil range, including aftermarket tail configurations.
- Symmetrical connection: allows the fuselage to be rotated while maintaining the same mounting position.
- Stabilizer holes with 10mm pitch , compatible with most flat mount taillights with 30 or 40mm spacing.
- Two lengths available: 31.5 cm and 36.5 cm to choose between greater agility or greater stability and pump.
- Strong and rigid aluminum construction , designed to last over time and withstand the stresses of foiling.
Technical specifications
| Type | Reversible rear fuselage (top / bottom mount) |
|---|---|
| Available lengths | 31.5 cm and 36.5 cm |
| Stabilizer connection | Holes with 10mm pitch, compatible with 30mm or 40mm flat mount stabilizers |
| Compatibility | Compatible with the AK foil range and many aftermarket tail fins with standard flat mount attachment |
| Construction | Machined aluminum, designed for rigidity and durability |
| Ideal use | Wingfoil, surf foil and kite foil for those seeking maximum flexibility when changing stabilizers |
Why choose it
- Maximum versatility: allows you to mount AK stabilizers and many aftermarket tails without changing the fuselage.
- Customizable setup: thanks to the two lengths and reversible assembly, you can adapt the feel, pump, and stability.
- “Bridge” solution: ideal for testing multiple stabilizers or switching to different lines while keeping the same foil system.
Frequently Asked Questions
What does it mean that the fuselage is reversible?
This means that it can be mounted with the flat side facing upwards (top mount) or downwards (bottom mount), choosing the most suitable orientation based on the tail used.
Can I use stabilizers from other brands?
Yes, as long as the tail uses a flat mount with a 30 or 40 mm spacing and hardware compatible with the 10 mm pitch of the fuselage.
How do I choose the right length (31.5 vs 36.5 cm)?
The 31.5 cm offers a more agile and surfy feel; the 36.5 cm provides greater stability, support when pumping, and control at high speeds. The choice depends on weight, style, and the front wing used.
Is this compatible with all AK masts?
It is designed to work with AK system masts that use the same fuselage attachment standard, integrating seamlessly with most setups in the range.
What advantage does it offer over a fuselage dedicated to a single type of tail?
A dedicated fuselage is optimized for a single tail; the Reversible Fuselage instead allows you to change the stabilizer and orientation without having to replace the fuselage as well.
What is usually included in the package?
The fuselage alone is supplied; the mast, front wing, stabilizer, and screws must be selected separately based on the desired foil setup.
