Foil Set Leviathan PRO 1060-663-370/73
Couldn't load pickup availability

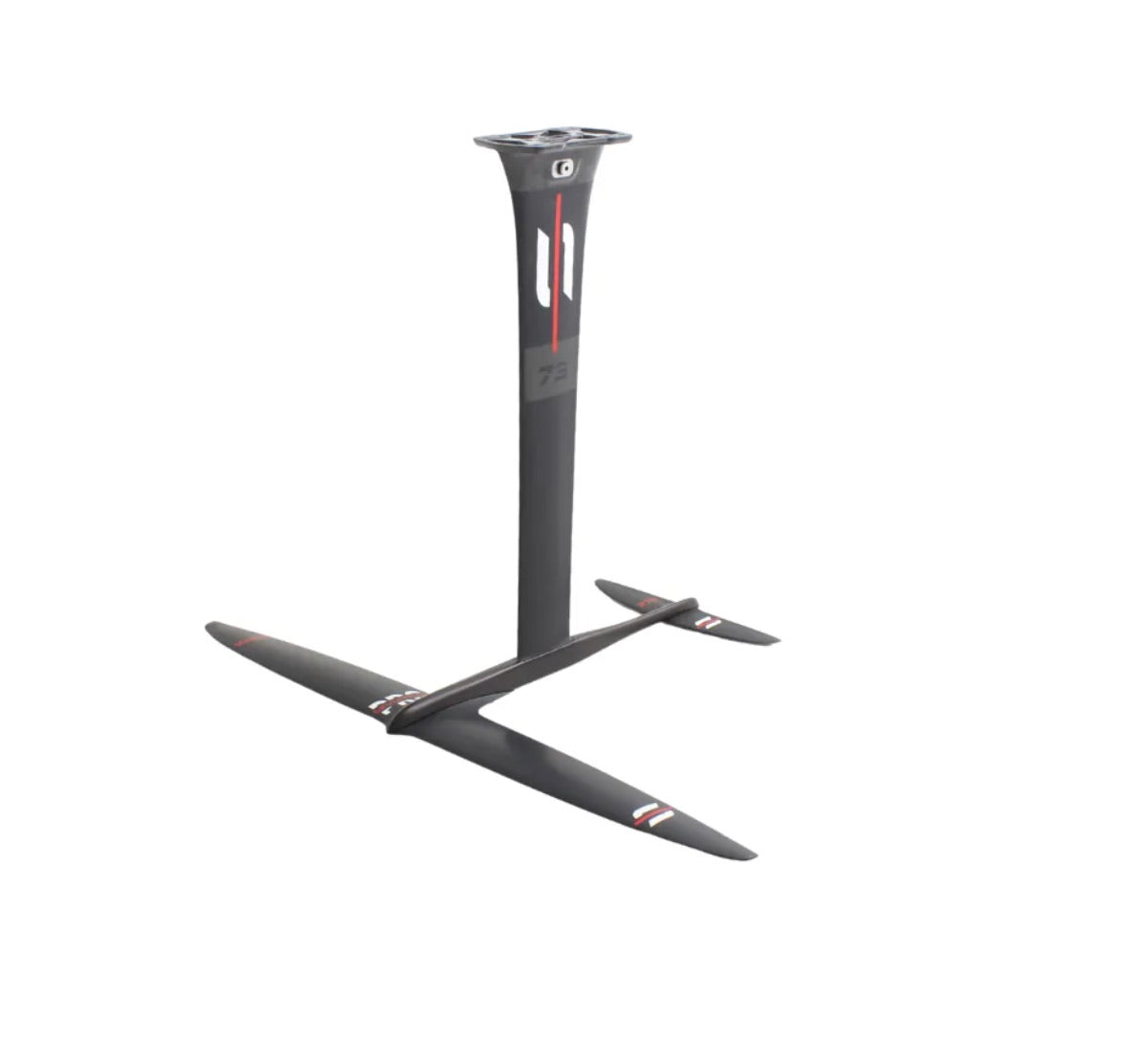

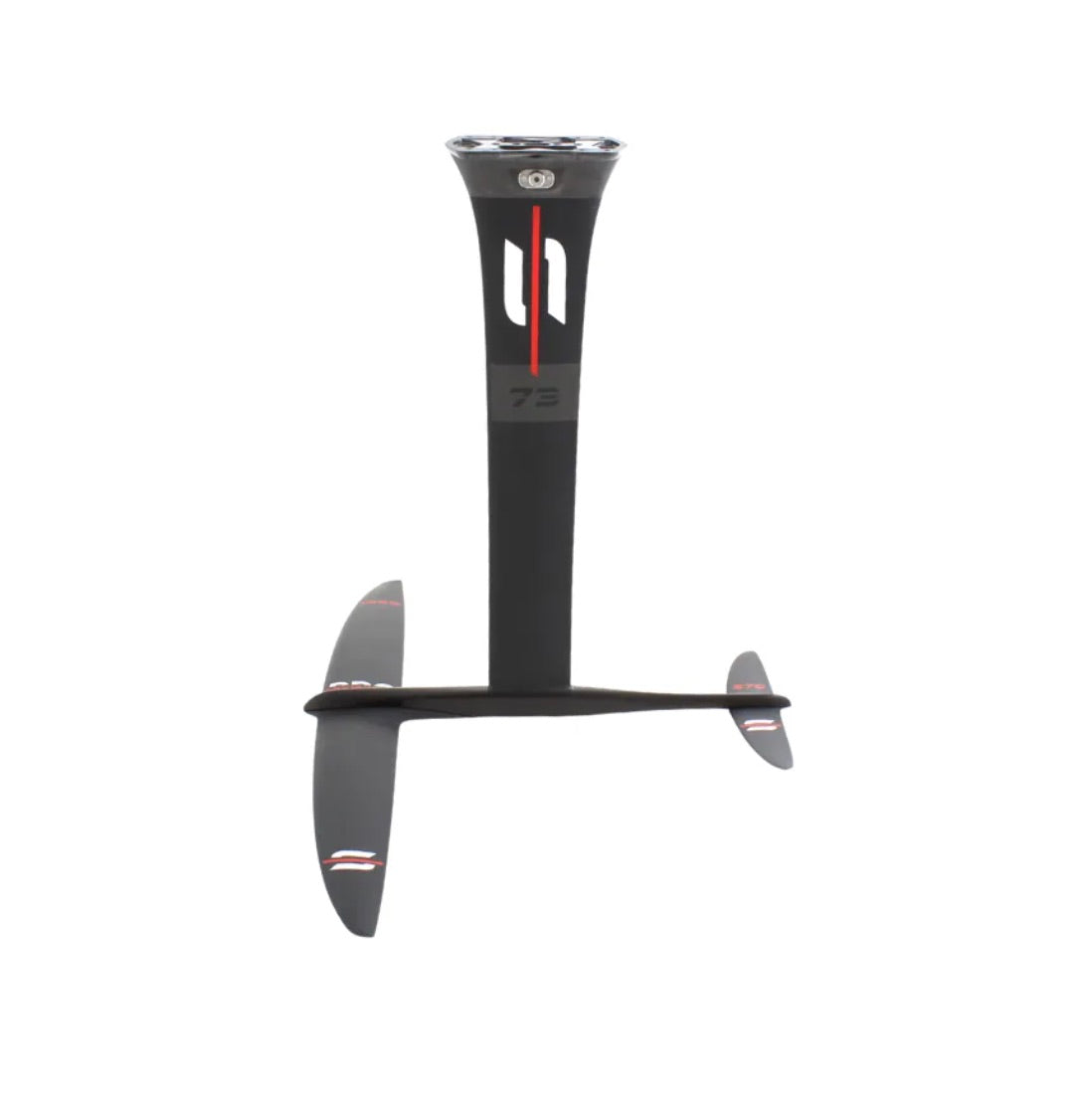

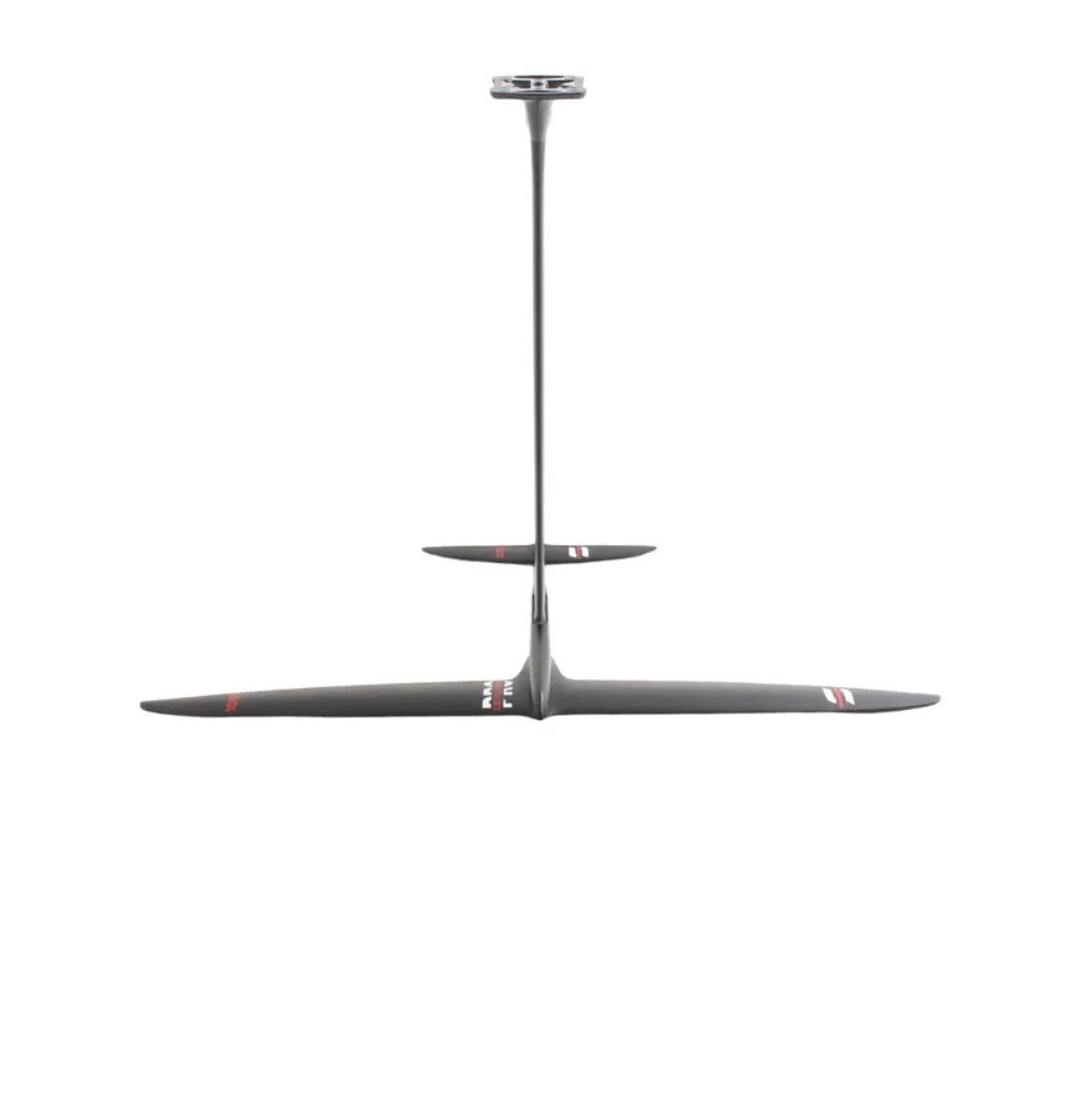

The Leviathan PRO 1060-663-370/73 Foil Set is the most radical downwind weapon in the Sabfoil range, developed to break records in downwind, pump race, and SUP race. It combines the ultra-high aspect ratio Leviathan PRO 1060 front wing with the Kraken 73 mast to offer pure speed and glide efficiency, without compromise.
Designed for experienced and performance-oriented riders, this set ensures a relatively early takeoff, high top speed, and extremely long glide, ideal for fast downwind races, long distances, and pumping on waves and bumps. It is not suitable for jumping and freestyle, both due to its construction (high-modulus carbon) and specific geometry.
Key Strengths
- Leviathan PRO set dedicated to fast freeride, fast downwind, pump race, and SUP race.
- 1060 wing with very high AR for maximum glide efficiency and speed.
- Short and stiff Kraken 73 mast for greater control and responsiveness in downwind.
- Exceptional glide for connecting bumps and waves with minimal speed loss.
- Relatively easy takeoff compared to a race setup, with excellent acceleration.
- Hydrofoil bag and Q02K titanium quick release system included.
Usage Warnings
- High-modulus carbon parts, very stiff but more fragile to impacts: avoid impacts and improper use.
- Not suitable for jumping and freestyle; use for these activities is not recommended and not covered by warranty.
- The front wing and configuration are not designed for pairing with Piuma fuselages or masts.
Who It's For
- Advanced and pro riders focused on high-performance downwind, pump race, and SUP race.
- Foiler who seek high speed, great efficiency, and a race feel in medium/strong conditions.
- Those who want a specific set for racing and fast sessions, rather than all-around or freestyle use.
Components Included in the Kit
- Sabfoil Kraken 73 mast (MK/73).
- Sabfoil Leviathan PRO 1060 front wing (WLP/1060).
- Sabfoil Flat 370 stabilizer (SF/370).
- Fuselag 663 T8/R8 (F663K).
- Carbon rail plate with titanium inserts (CP02K/Ti).
- Hardware kit WLP1360/1260/1160/1060/WO835/940/945/W950 (MH133).
- Hardware kit stabilizers S330Y/S370/S376/S399/S400/SRD339/SRD379 (MH107).
- Hardware kit fuselages F663K/F703K/F753K/F903K/F1003K (MH138).
- Hardware kit carbon plate–rail board (MH160).
- Replacement pins and shims for Q02K system (MHQ02).
- Foam pad for plate (MH144).
- Allen keys, Torx keys, and grease (MH137).
- Negative shims for stabilizers (MHW060).
- Sabfoil Hydrofoil Bag – size L (MA008).
Technical Specifications

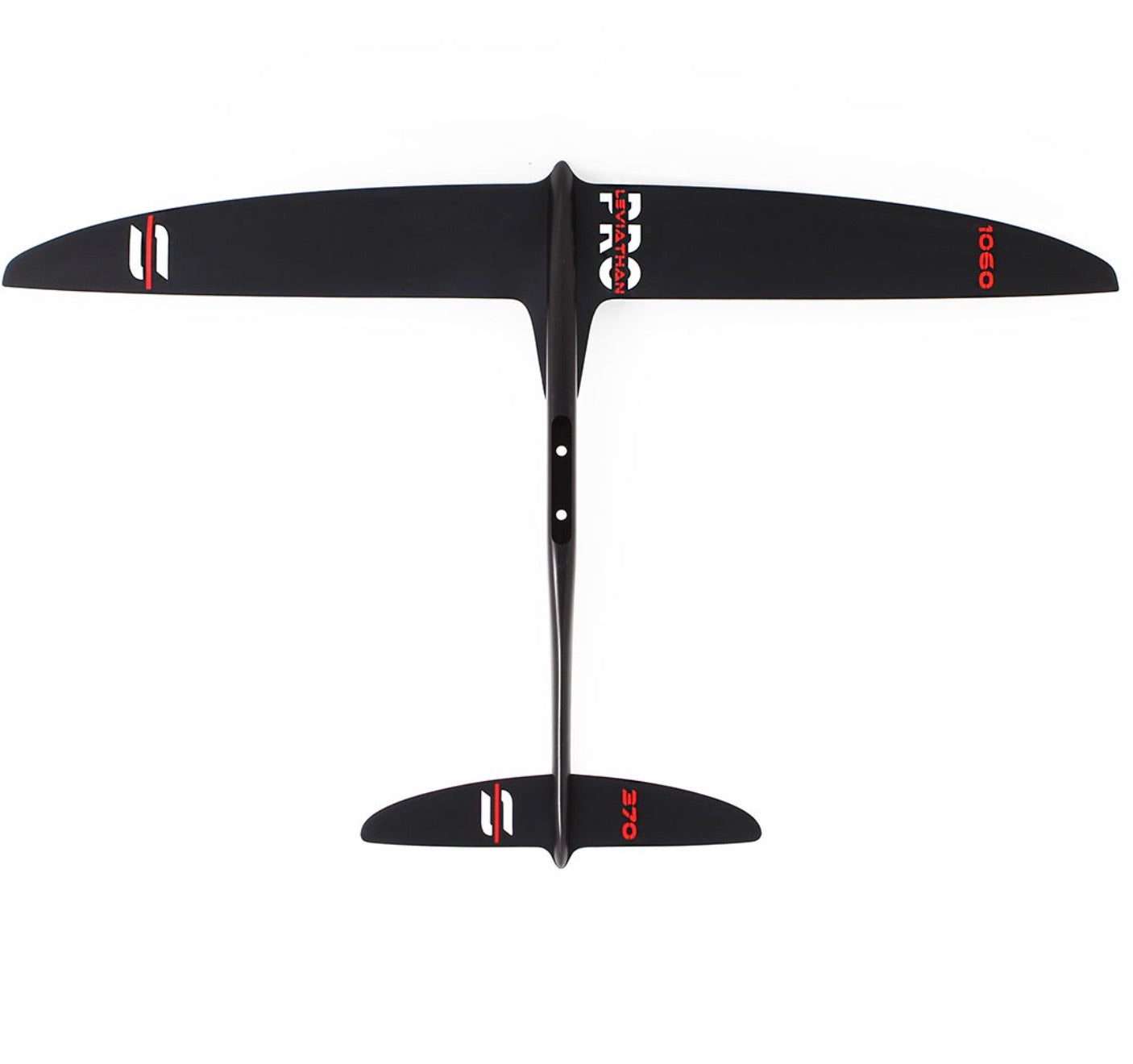

Leviathan PRO 1060 Front Wing
- Wingspan: 1060 mm.
- Surface Area: 947 cm².
- Volume: 757 cm³.
- Aspect Ratio (AR): 11.53.
- Maximum Chord: 110 mm.
- Maximum Profile Thickness: 14 mm.
Flat 370 Stabilizer
- Wingspan: 370 mm.
- Surface Area: 195 cm².
- Volume: 85 cm³.
- Aspect Ratio (AR): 7.00.
- Maximum Chord: 67.5 mm.
- Maximum Profile Thickness: 7.3 mm.
Fuselag, Mast, and Kit Weight
- Fuselag: length 663 mm.
- Mast: height 730 mm.
- Board Connection: carbon plate (rail mount).
- Indicative foil kit weight: data not specified by the manufacturer.
On-Water Performance
Usage Range and Disciplines
- Range: Leviathan PRO.
- Recommended for: fast freeride, downwind, fast freeride, fast downwind, pump race, SUP race.
- Ideal conditions: medium–strong wind, regular swell or bumps, and fast courses.
Speed and Control
- Indicative takeoff speed: 10 – 12 knots.
- Indicative top speed (80 kg rider): 25 – 27 knots.
- Maximum glide efficiency, with great directional stability even at high speeds.
Riding Sensation
- Distinctly race feeling, very direct and responsive underfoot.
- Extremely long glide, ideal for downwind and pump courses over significant distances.
- Less forgiving behavior compared to the "Easy" Leviathan, but extremely high-performance for experienced riders.
Advantages of the Leviathan PRO Line
- Very high aspect ratio designed to maximize speed and glide in races.
- Set dedicated to those who want to compete or push the limits in downwind and pump race.
- High-modulus carbon construction for maximum rigidity and immediate response.
- Not designed for freestyle or jumping: total focus on speed and glide performance.
Pairing Recommendations
- Recommended with high-performance downwind, SUP race, or wing foil boards with rail mount.
- Ideal with wings or paddles (SUP) in spots with well-defined downwind courses.
- Not recommended for those looking for a first all-around foil or a setup for jumping and tricks.
Frequently Asked Questions (Q&A)
Is this kit suitable for jumping and freestyle?
No, the Leviathan PRO 1060 is expressly not recommended for jumping and freestyle due to both its geometry and the relative fragility of high-modulus carbon. Use for these disciplines can be dangerous and is not covered by warranty.
What skill level is required to use the Leviathan PRO 1060-663-370/73 Foil Set?
It is recommended for advanced or pro riders with good experience in downwind, pump, or SUP racing. It requires control and sensitivity, and is not suitable as a first foil for beginners.
Is it a good foil for light wind?
It is designed more for medium–strong conditions and fast downwind: it also works in moderate wind, but its true potential emerges when speed and swell can be exploited. If you are looking for pure lightwind easy, the "Easy-Riding" Leviathan are more suitable.
What is the difference compared to an Easy-Riding Leviathan (e.g., 1150 or 950)?
Compared to the Easy-Riding versions, the 1060 PRO is faster, more efficient, and less forgiving, with a more race-like feel. The Easy-Riding models are more comfortable, stable, and suitable for freeride and progression.
What type of board is recommended with this kit?
It pairs best with downwind, SUP race, or high-performance wing foil boards, with a smooth hull and sufficient length to manage speed and glide. A technical and rigid board helps to fully exploit the potential of the Leviathan PRO 1060.
What is the Q02K system for?
The Q02K titanium quick release system allows the foil to be mounted and dismounted quickly and precisely while maintaining rigid connections. It is ideal for those who travel frequently, change configurations, or want to reduce setup times between sessions.
