Foil Set Razor PRO 775-603-325 73 or 83
Couldn't load pickup availability

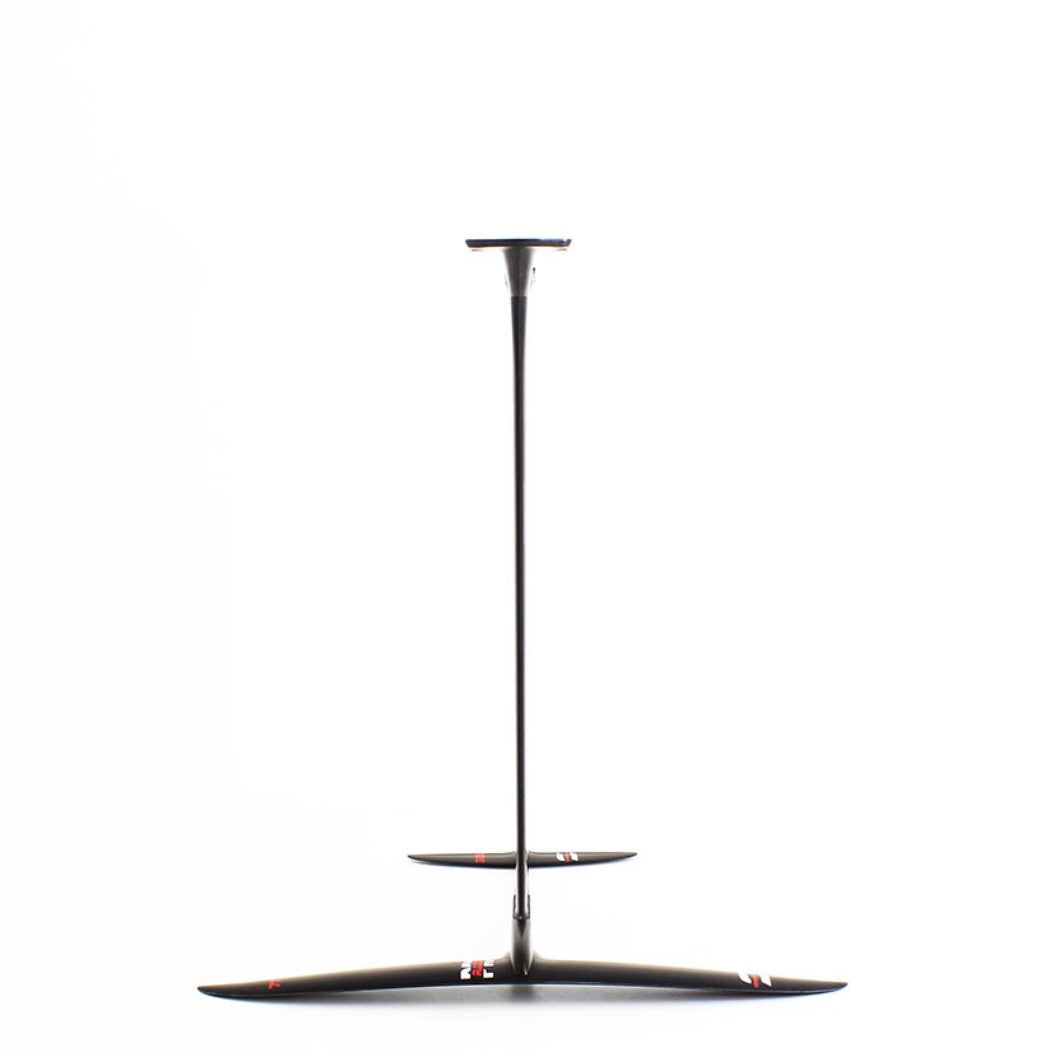

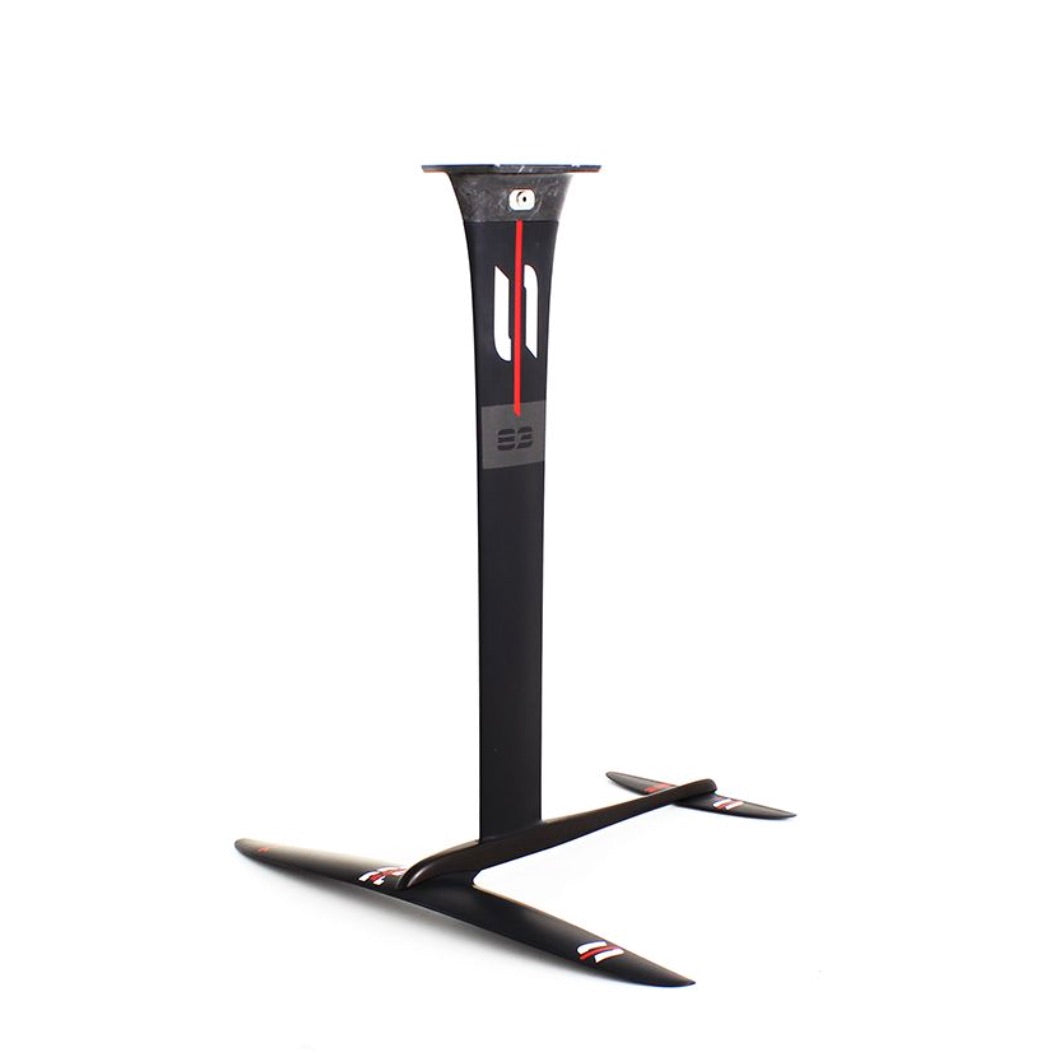

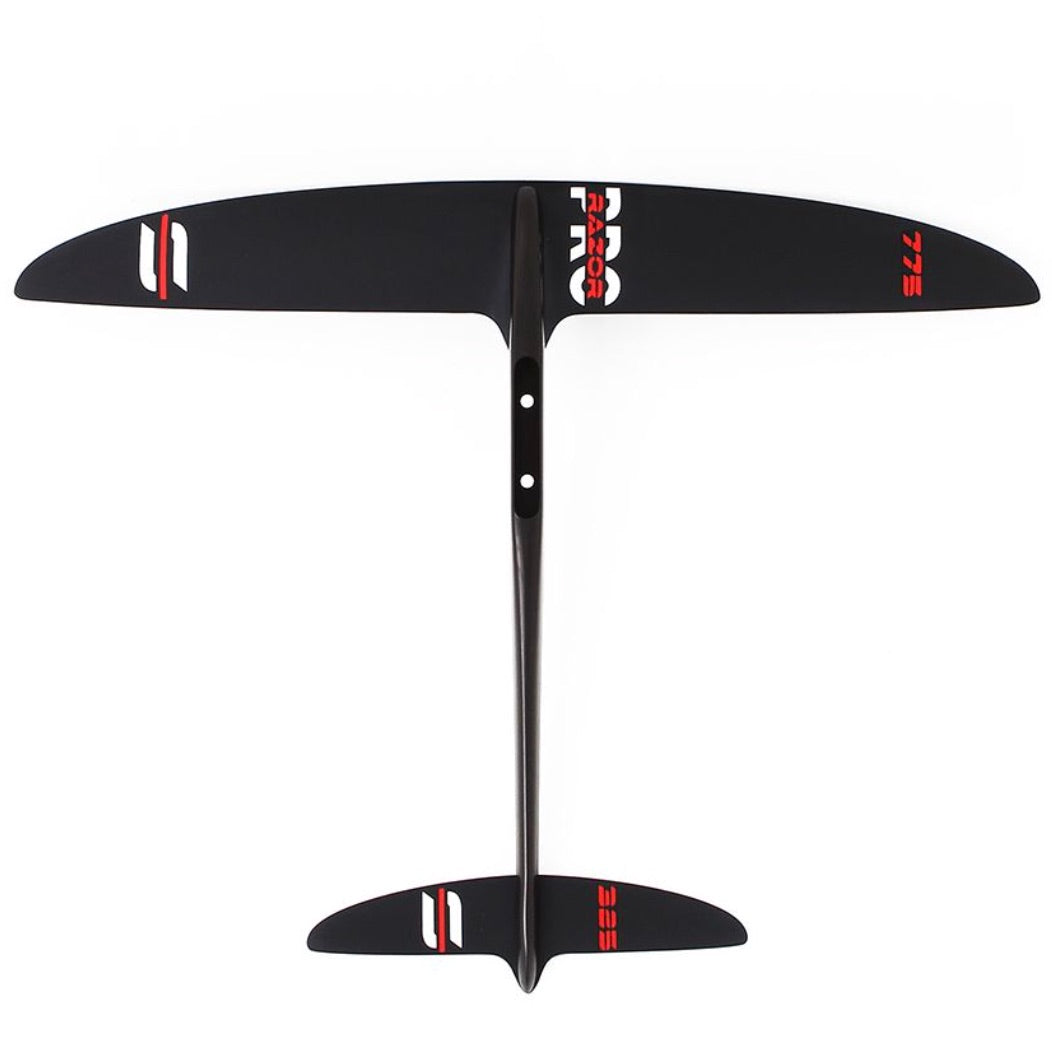

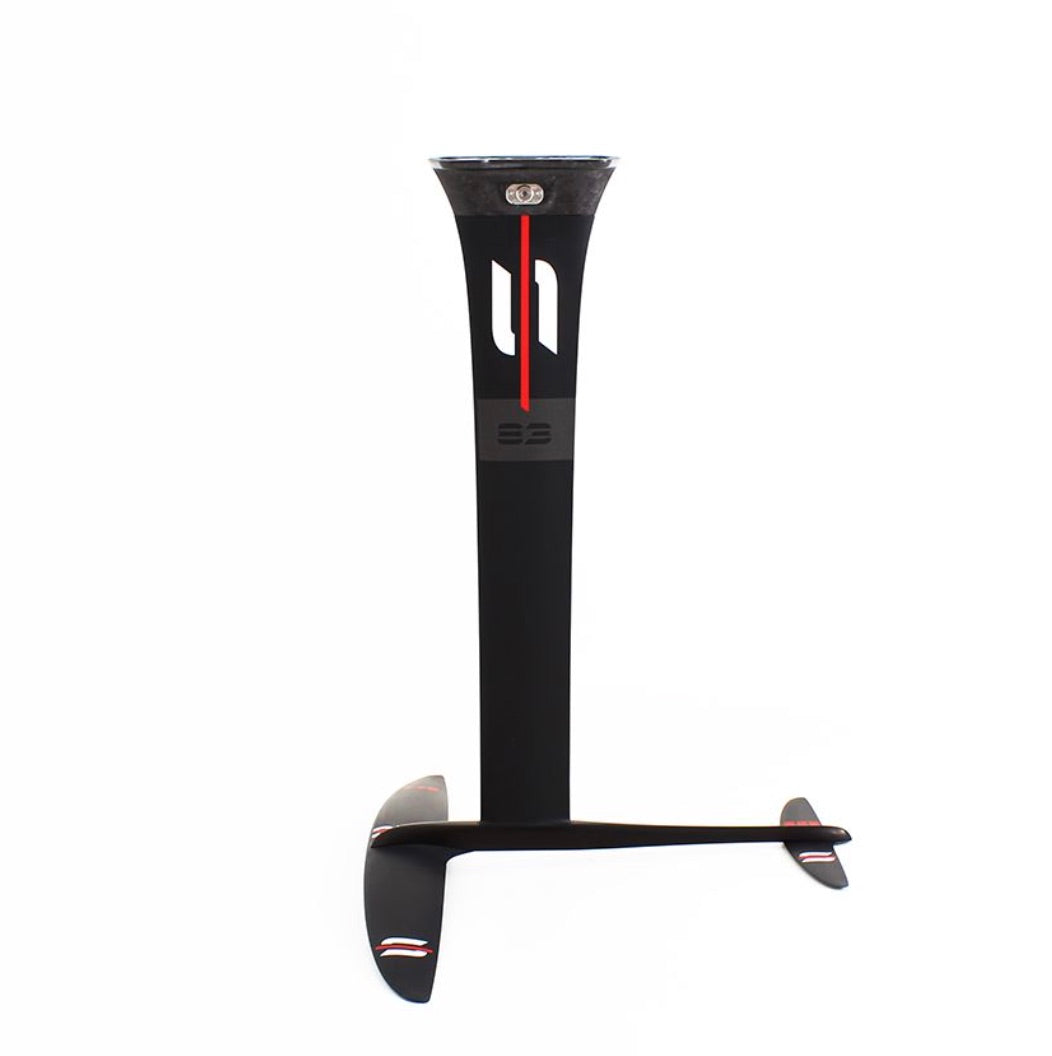

The Razor PRO 775-603-325 Foil Set is a high-performance hydrofoil developed by Sabfoil for fast downwind, quick freeride, prone surf, and medium-to-large wave surfing. The Razor PRO 775 is designed to maximize performance on waves and for faster downwind, offering lightning-fast foil response, tight turns, and plenty of thrust even during radical tip breaches or when returning from the crest to the base of the wave.
The set is available in two versions: with an 830 mm mast (MK/83) and with a 730 mm mast (MK/73), so you can choose between greater clearance over chop/waves (83) or a more direct and compact feel (73). In both cases, the flat 325 stabilizer makes the foil extremely maneuverable and precise for surfing.
Main Strengths
- Razor PRO range dedicated to Downwind, Fast Downwind, Fast Freeride, Freeride, Prone Surf, Surf, and Wave.
- Razor PRO 775 high aspect ratio wing for speed, control, and efficient gliding in surf and downwind.
- Lightning-fast response to rider input and tight turns even on steep waves.
- Stability and thrust even during aggressive tip breaches.
- Two mast options: 830 mm (more clearance over chop/waves) and 730 mm (more direct and reactive feel).
- Flat 325 stabilizer for maximum maneuverability and precise carving.
- Sabfoil hydrofoil bag and Q02K quick-release system included.
Available Versions (mast)
- Foil Set / Mast 83: standard configuration for wing, surf, and downwind with good height clearance.
- Foil Set / Mast 73: more compact and direct version, ideal for prone, shorebreak, and shallower spots.
Who is it for?
- Intermediate-advanced riders looking for a fast and reactive foil for surf foil and fast downwind.
- Foiler who wants a unique setup for prone surf, wave riding, and fast freeride.
- Those who desire a more "nervous" and high-performance foil compared to larger surface models.
Components included in the kit
- Sabfoil Kraken 83 or 73 mast (MK/83 or MK/73, depending on the chosen version).
- Sabfoil Razor PRO 775 front wing (WRP/775).
- Sabfoil Flat 325 stabilizer (SF/325).
- Fuselage 603 T6/R8 (F603K).
- Carbon rail plate with titanium inserts (CP02K/Ti).
- Hardware kit WR680/780/820/880/980/WRP775/825/875 (MH161).
- Stabilizer hardware kit S325/S355/S375/S380/S395/S425/S430/S450/S480/S483 (MH108).
- Fuselage hardware kit F603K/F653K/F713K/F1000RD/F1001RD (MH139).
- Carbon Plate to Rail Board hardware kit (MH160).
- Replacement pins and shims for Q02K system (MHQ02).
- Foam pad for plate (MH144).
- Allen keys, Torx keys, and grease (MH137).
- Negative shims for stabilizers (MHW060).
- Sabfoil Hydrofoil Bag size L (MA008).
Technical Specifications
Razor PRO 775 front wing
- Wingspan: 780 mm.
- Surface area: 631 cm².
- Volume: 543 cm³.
- Aspect Ratio (AR): 9.64.
- Maximum chord: 100 mm.
- Maximum profile thickness: 15.25 mm.
Flat 325 stabilizer
- Wingspan: 325 mm.
- Surface area: 155 cm².
- Volume: 61 cm³.
- Aspect Ratio (AR): 7.05.
- Maximum chord: 58.9 mm.
- Maximum profile thickness: 6.4 mm.
Fuselage, mast, and kit weight
- Fuselage: length 603 mm.
- Mast: height 830 mm in the MK/83 version, 730 mm in the MK/73 version.
- Board connection: carbon plate (rail mount).
- Indicative foil kit weight (MK/83 version): not specified, light and rigid configuration.
Performance on Water
Usage range and disciplines
- Recommended for: Downwind, Fast Downwind, Fast Freeride, Freeride, Prone Surf, Surf, Wave.
- Ideal conditions: medium-to-large waves, fast swells, and medium-to-strong wind.
Speed and control
- Indicative takeoff speed: 13 – 15 knots.
- Indicative top speed (80 kg rider): 25 – 27 knots.
- Great stability at high speeds with control even during abrupt accelerations.
Riding sensations
- Direct and very reactive feel, with immediate response to rider input.
- Tight and progressive carving, ideal for surfing the wave from top to bottom and vice versa.
- Effective pumping to get back on the wave or connect multiple sections and bumps.
Mast choice: 830 mm vs 730 mm
- 830 mm Mast: more clearance over chop and waves, greater tolerance to touchdowns and altitude variations, ideal for larger waves and challenging downwind.
- 730 mm Mast: more compact and direct setup, ideal for prone surf in shallower spots, shorebreak, and for those seeking even more reactivity in rail changes.
Combination tips
- Recommended with compact prone surf foil boards or light wing/downwind boards with tracks.
- For mainly prone use: 73 mast often preferred; for mixed wing/surf use and bigger waves: 83 mast.
- Ideal setup for riders who want a unique foil for surfing steep waves and fast downwind.
Frequently Asked Questions (Q&A)
What practical difference do I feel between the version with mast 83 and the one with mast 73?
With the 83 mast, you have more vertical clearance and stability in chop, thus more "security" at high speeds and on larger waves. With the 73 mast, the foil is more direct and reactive, you feel the wave closer to your feet and have less leverage, ideal for prone in shallow spots and for ultra-fast carving.
Is the Razor PRO 775-603-325 Foil Set also suitable for beginners?
It is more suitable for intermediate riders: the relatively small surface area and fast nature require a minimum of foil experience. For beginners, a Razor or a Leviathan with a larger and more buoyant wing is better.
Can I also use this kit for wingfoiling?
Yes, especially in fast wave and downwind configurations, for already experienced wingfoil riders. If you are looking for an easy all-around wing, however, Medusa or Leviathan Easy-Riding kits are more suitable.
What is the included Q02K quick-release system for?
The titanium Q02K system allows for quick assembly and disassembly of the foil while maintaining rigid and precise connections. It is ideal if you frequently transport the foil, change configurations, or want to reduce assembly time between sessions.
```
