Evo Wings and Evo Wings HA
Couldn't load pickup availability

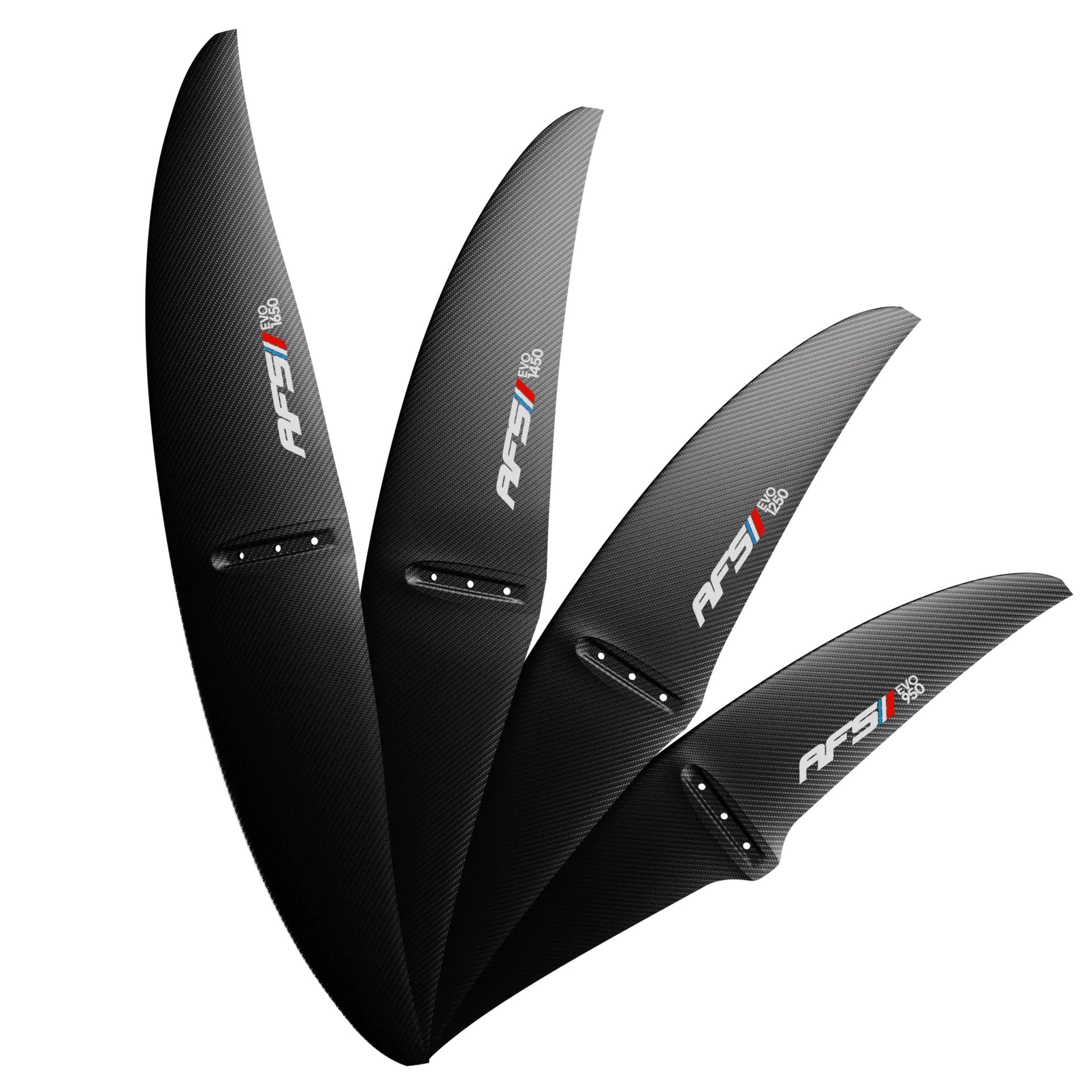

AFS Evo Front Wing
High-performance carbon front wing designed for wingfoiling, SUP foiling, surf foiling, downwinding, and dockstarting. The new Evo range replaces the Performer, maintaining great accessibility and fluidity, but pushing the envelope on speed and maneuverability.
The medium aspect ratio (around 7.5–8.1) and the four available sizes allow you to cover all conditions, from flat freeriding to wave riding and longer downwinds.
Strengths
- Ideal balance between performance and ease: perfect for progressing and pushing your level.
- Fast yet forgiving profile, with great control even at higher speeds.
- Medium aspect ratio for an excellent compromise between glide, pumping and tight carving.
- Size range 950–1650 to suit all weights and riding styles.
- HR Carbon / Corecell construction for stiffness, lightness and immediate response.
Front wing dimensions
| Model | Surface area (cm²) | Wingspan (mm) | Aspect Ratio | Max rope (mm) | Max thickness (mm) | Construction | Weight (kg) | Screws |
|---|---|---|---|---|---|---|---|---|

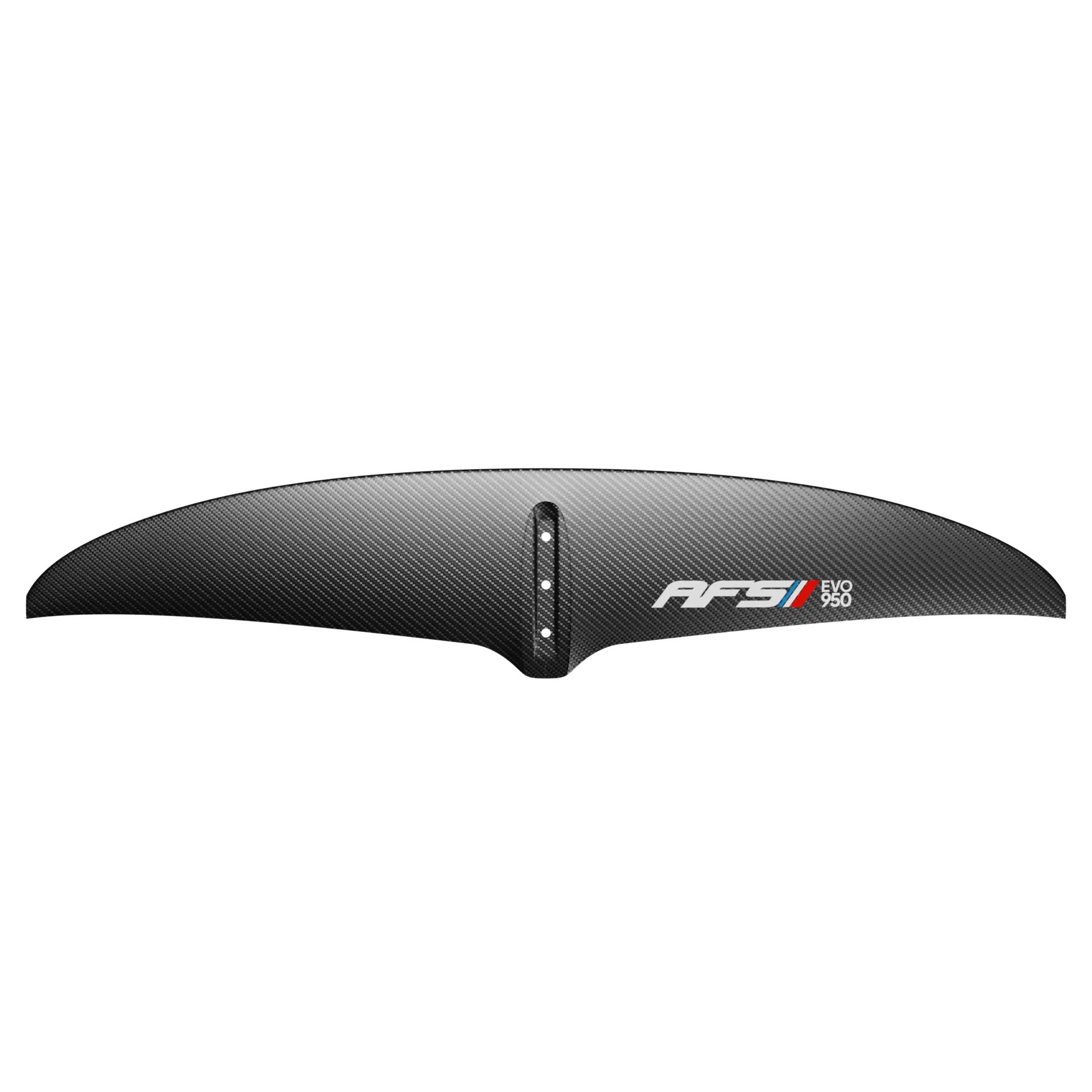

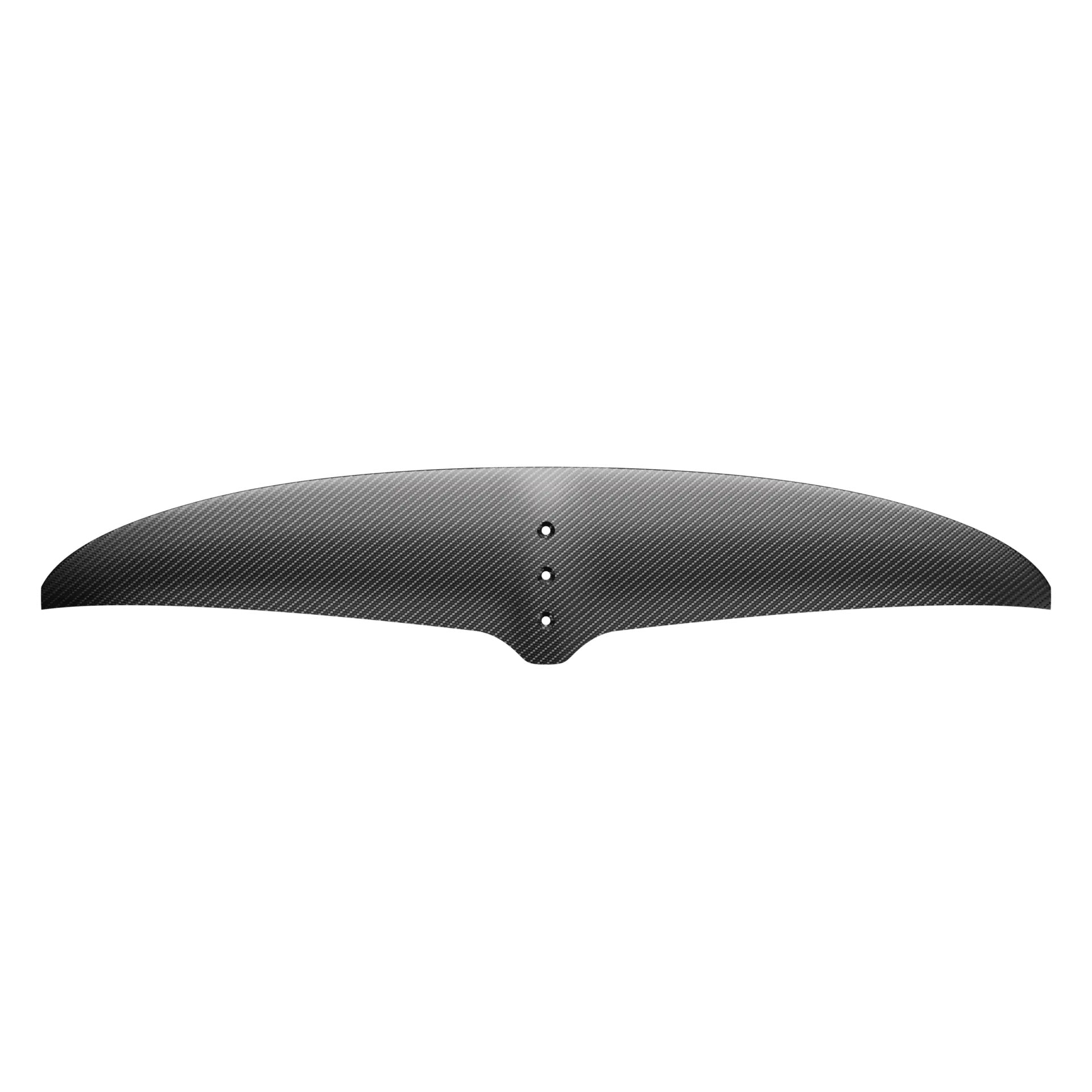

| Evo 950 | 950 | 880 | 8.1 | 150 | 13.5 | HR Carbon / Corecell | 0.7 | M8 x 20 mm – Torx 45 |

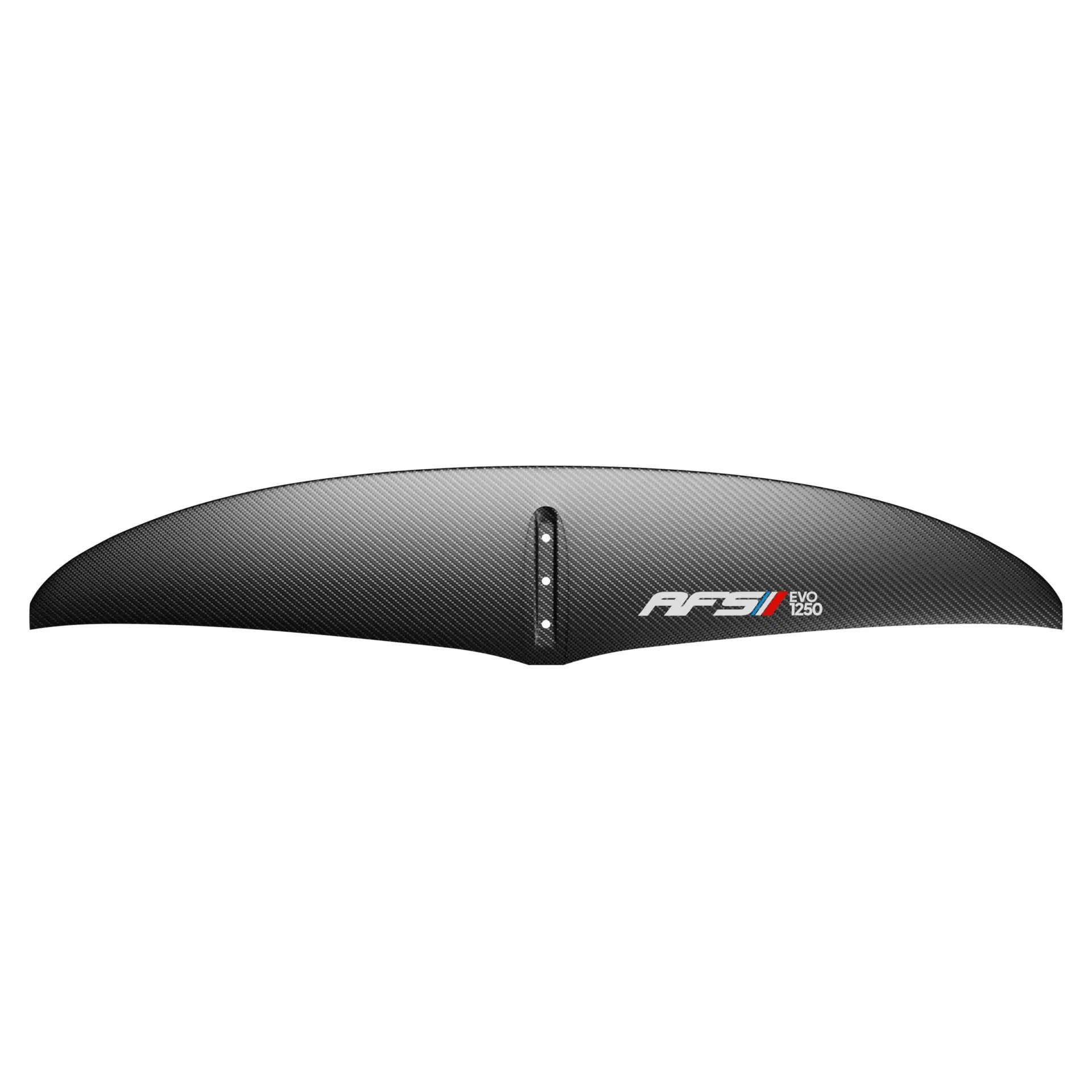

| Evo 1250 | 1250 | 970 | 7.6 | 185 | 16.5 | HR Carbon / Corecell | 0.8 | M8 x 20 mm – Torx 45 |

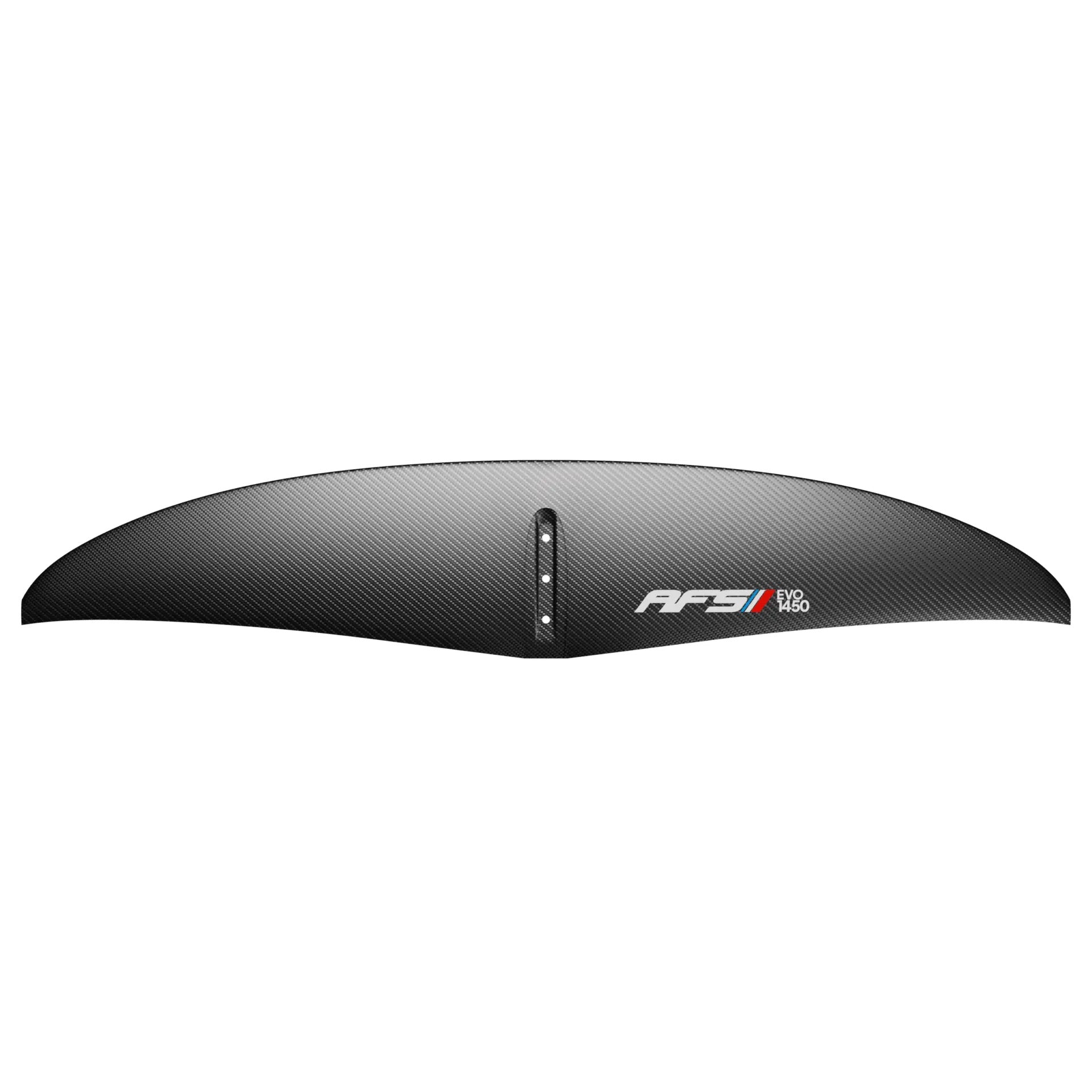

| Evo 1450 | 1450 | 1040 | 7.6 | 195 | 17.5 | HR Carbon / Corecell | 1.0 | M8 x 20 mm – Torx 45 |

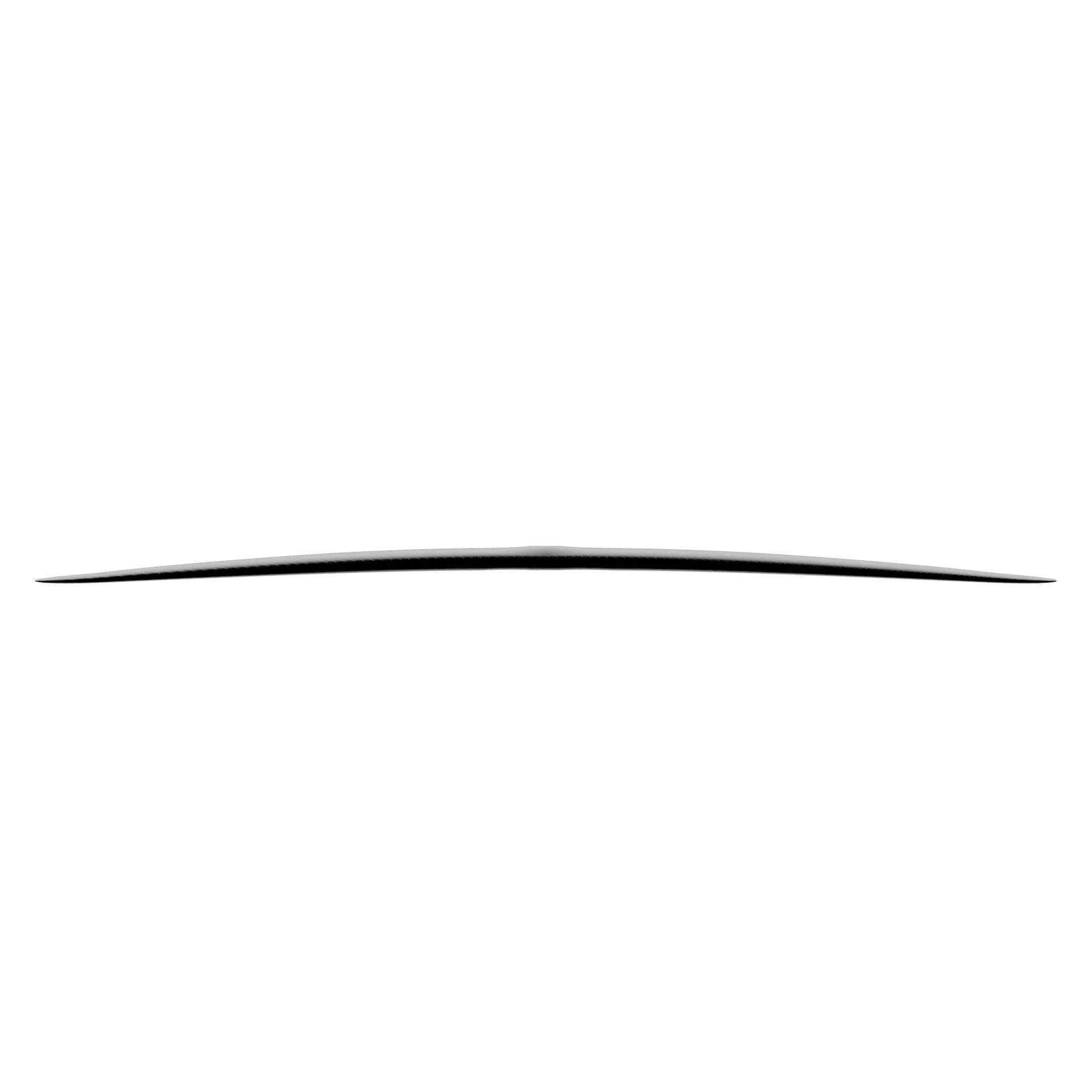

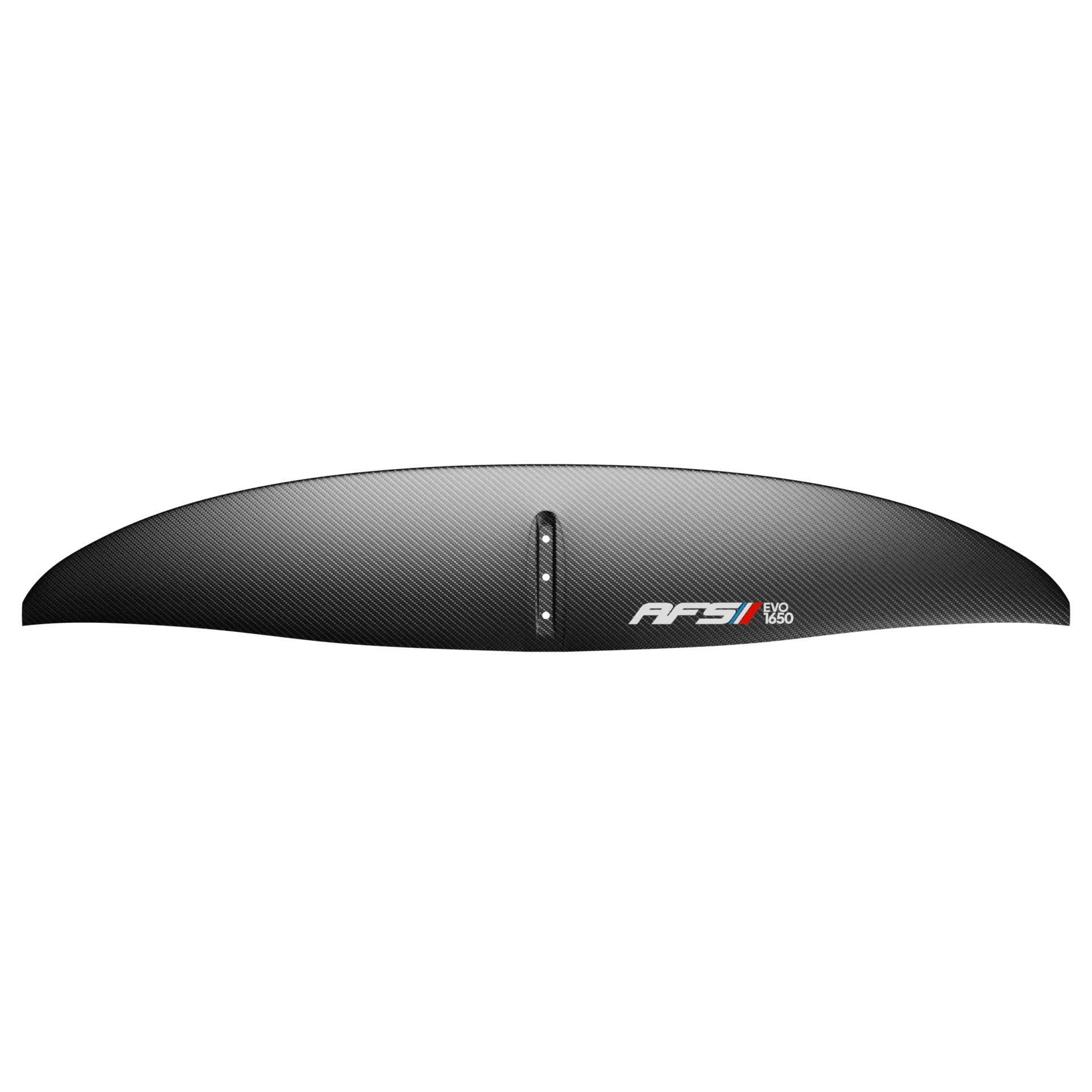

| Age 1650 | 1650 | 1110 | 7.5 | 195 | 17.5 | HR Carbon / Corecell | 1.1 | M8 x 20 mm – Torx 45 |
This front wing is compatible with both Fuselink and Performer poles using the dedicated Switch fuselage.
Size guide – choosing the size
Beginner level – wingfoil
| Rider weight | Main front wing | Strong wind (> 20 knots) | Recommended stabilizer |
|---|---|---|---|
| < 60 kg | Evo 1250 | Evo 1250 | Cruiser S |
| 60–75 kg | Evo 1450 | Evo 1250 | Cruiser M |
| 75–90 kg | Age 1650 | Evo 1450 | Cruiser M |
| > 90 kg | Age 1650 | Age 1650 | Cruiser M / Cruiser L |
Intermediate level – wingfoil
| Rider weight | Main front wing | Strong wind (> 20 knots) | Recommended stabilizer |
|---|---|---|---|
| < 60 kg | Evo 1250 | Evo 950 | Cruiser S |
| 60–75 kg | Evo 1250 | Evo 950 | Cruiser M |
| 75–90 kg | Evo 1450 | Evo 1250 | Cruiser M |
| > 90 kg | Age 1650 | Evo 1450 | Cruiser M |
Surf foil / Sup foil / Downwind
| Rider weight | Main front wing | Strong wind (> 20 knots) | Recommended stabilizer |
|---|---|---|---|
| < 60 kg | Evo 1250 | Evo 950 | Cruiser S |
| 60–75 kg | Evo 1450 | Evo 1250 | Cruiser S / Cruiser M |
| 75–90 kg | Evo 1450 | Evo 1250 | Cruiser S / Cruiser M |
| > 90 kg | Age 1650 | Age 1650 | Cruiser M / Cruiser L |
If your focus is downwind or SUP foiling in marginal conditions, you can choose the size up from the table to anticipate the take-off and increase comfort in wind lulls.

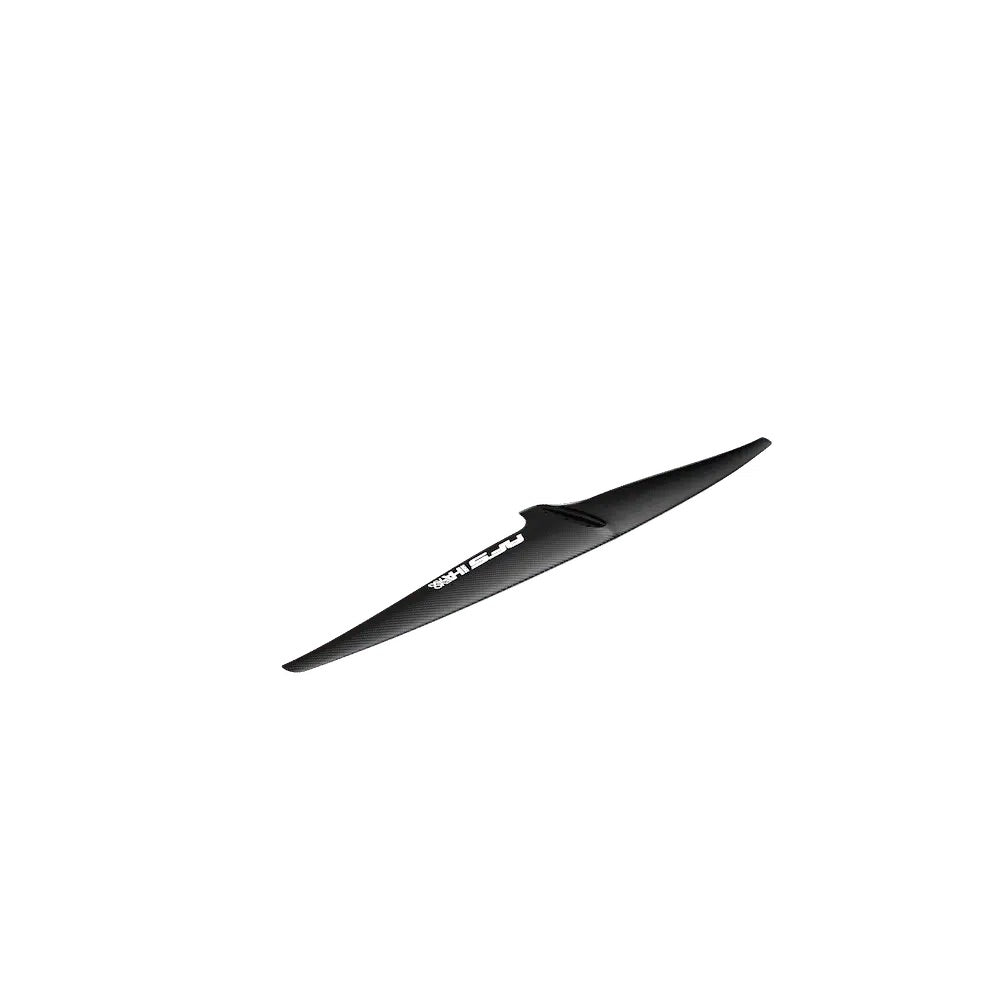

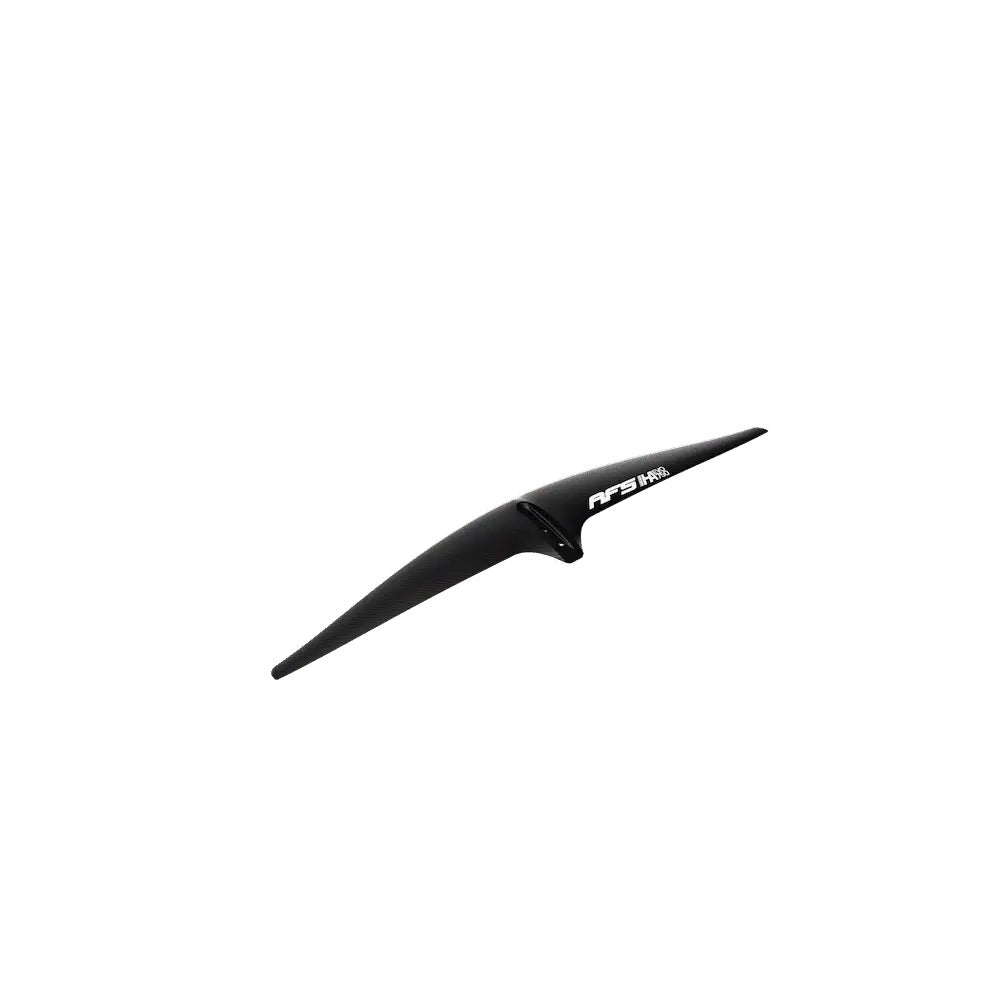

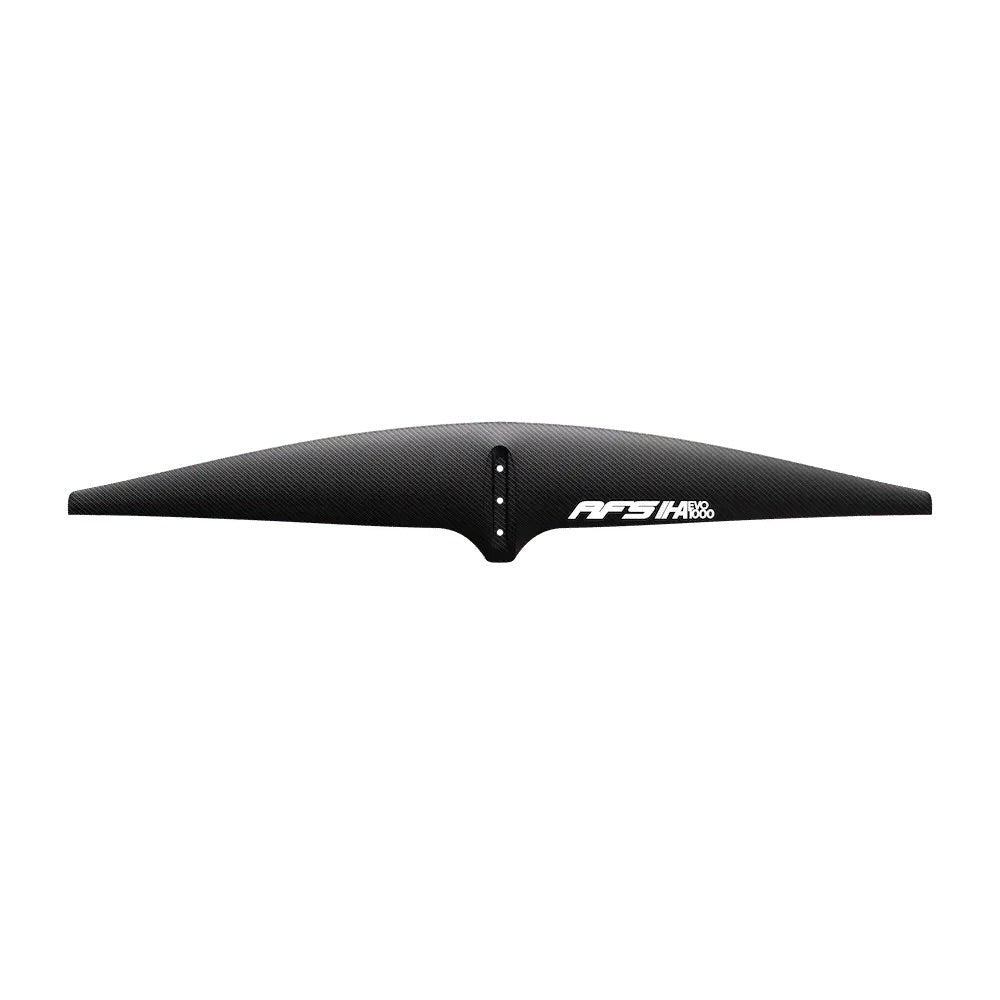

AFS Evo HA Front Wing
High aspect ratio front wing inspired by the Pure HA series, designed to offer an exceptional balance between glide and low speed stability, with full compatibility with the Evo quick mounting system.
Available in the HA750 and HA1000 sizes, it covers a range of uses from the light and dynamic rider to the heavier riders looking for efficiency, control and easy access to the HA world.
Strengths
- Inspired by the Pure HA range, with a focus on glide, stability and accessibility.
- Exceptional glide/stability ratio at low speeds, for downwind, freefly and advanced but not extreme wingfoiling.
- Compatible with Evo quick release system for quick assembly/disassembly of the foil.
- Can be used with both Fuselink and Performer poles via the Switch fuselage.
- Cover and screws included in the package (useful to mention in the technical description, but with no reference to warranty/payments).
Evo HA Front Wing Dimensions
| Model | Surface area (cm²) | Wingspan (mm) | Aspect Ratio | Max rope (mm) | Max thickness (mm) | Construction | Weight (kg) | Screw measurement |
|---|---|---|---|---|---|---|---|---|

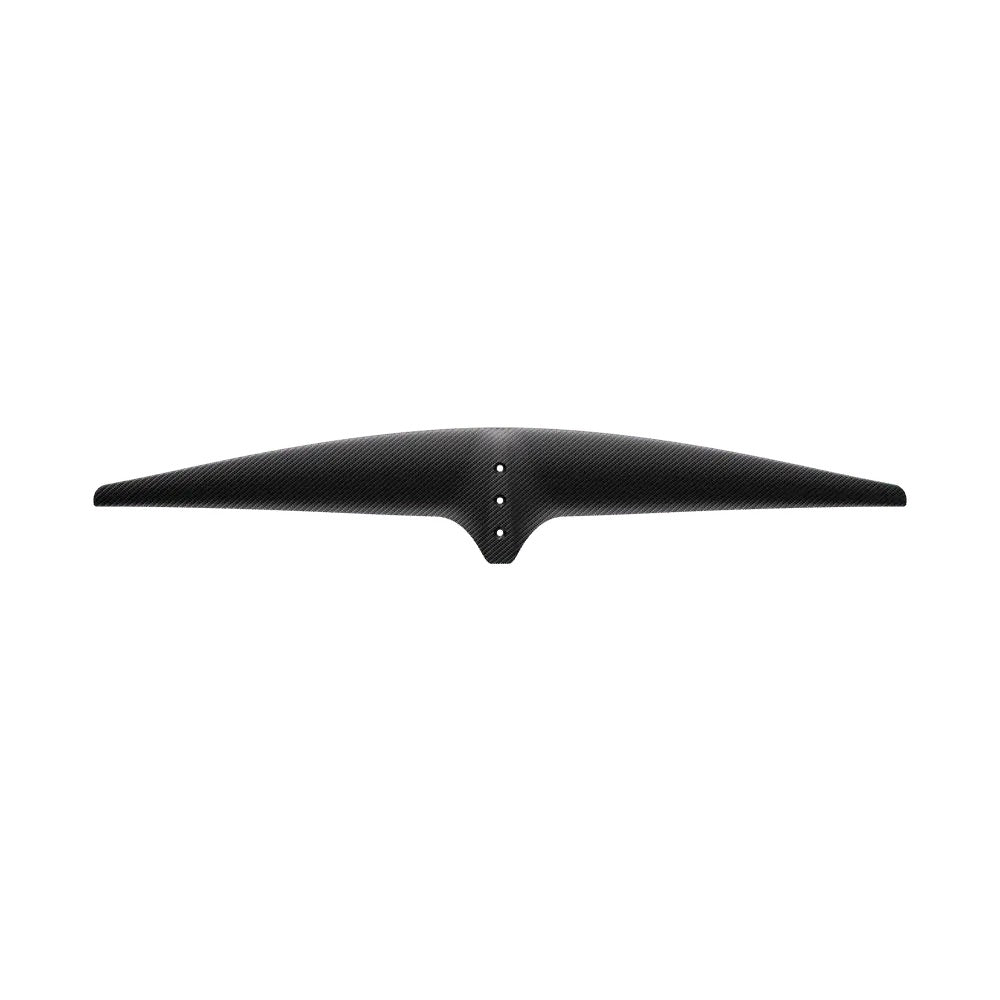

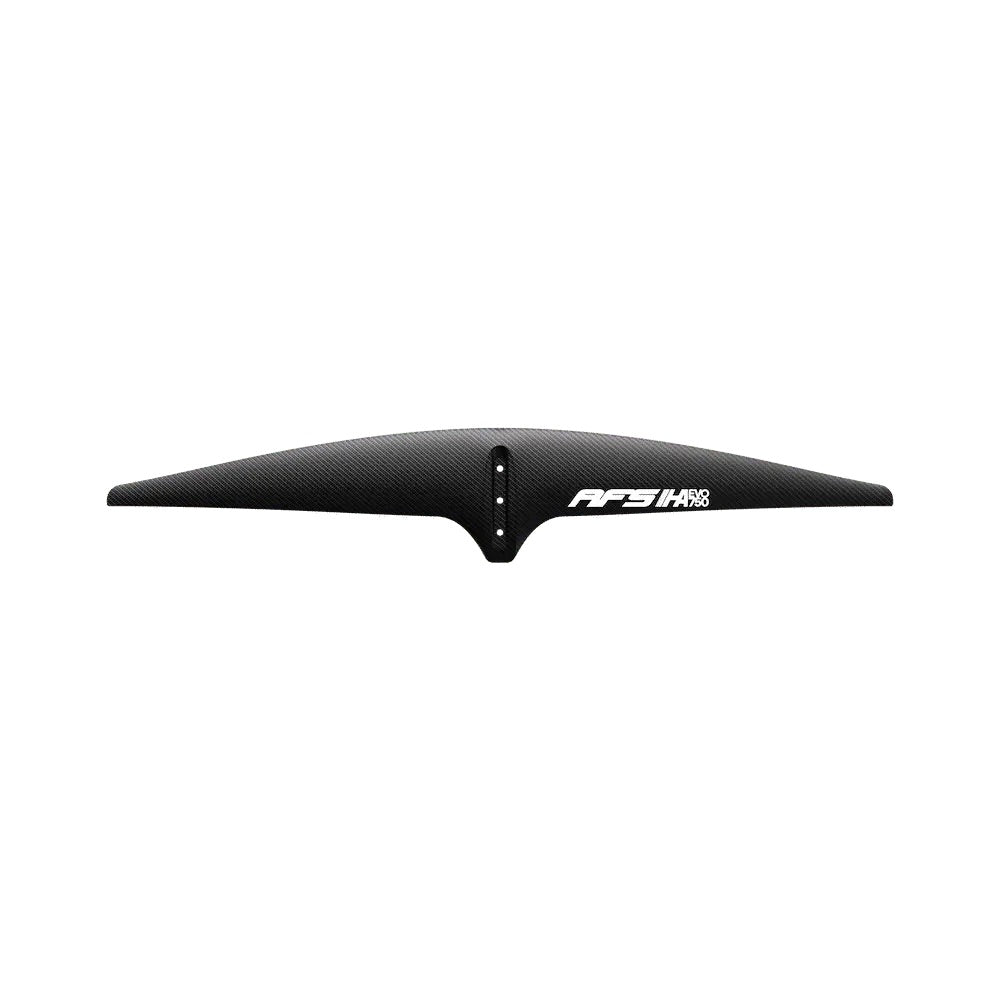

| Evo HA 750 | 750 | 1000 | 13.3 | 113 | 13.8 | Carbon | - | M8 x 20 mm – Torx 40 |
| Evo HA 1000 | 1000 | 1100 | 12.1 | 135 | 16 | Carbon | - | M8 x 20 mm – Torx 40 |
This front wing can be used with Fuselink poles as well as Performer poles, using the Switch fuselage as an interface between the two systems.
Size guide – choosing the size
| Rider weight | Front wing recommended | Recommended stabilizer |
|---|---|---|
| < 75 kg | Evo HA 750 | Cruiser S or Cruiser M |
| > 75 kg | Evo HA 1000 | Cruiser M |
If you're under 75kg and looking for a lively yet stable setup for freeflying, downwinding, and advanced wing flying, the 750 is the most responsive choice; above 75kg, the 1000 offers more lift and comfort while maintaining an excellent glide.
Evo High Aspect Frequently Asked Questions
Who is the Evo HA Front Wing intended for?
It is designed for intermediate and advanced riders who want to enter the world of HA with a wing that is more accessible than the Pure HA, while maintaining high glide, stability and ease of use.
What are the differences between HA750 and HA1000?
The 750 is faster and more maneuverable, ideal for lighter riders or those looking for a more playful feel; the 1000 offers more lift and support, ideal for heavier riders or those who want maximum ease in staying airborne.
What masts and fuselages is it compatible with?
It can be mounted on Fuselink poles and Performer poles using the Switch fuselage, thus easily integrating into existing AFS setups.
Is it also suitable for non-experts?
Despite being a performance-oriented HA wing, it maintains a good level of accessibility and is also suitable for progressing riders who already have a good base of foil control.
What size Evo HA wing should I choose?
If you weigh under 75 kg and want a single HA wing, the 750 is the best compromise between speed and stability; if you weigh over 75 kg or are looking for more support on the start and in lulls, the 1000 is the more versatile choice.
EVO Front Wing Middle Aspect FAQ
Who is the Evo Front Wing intended for?
The Evo range is designed for riders from advanced beginner to intermediate level looking for a unique front wing for wingfoiling, surf foiling, sup foiling and downwinding with excellent progression margin.
What sizes are available?
The Evo Front Wing is available in four sizes: 950, 1250, 1450 and 1650 cm², to cover light, medium and heavy weights and all wind intensities.
What masts and fuselages is it compatible with?
It can be used with both Fuselink and Performer poles, combining it with the Switch fuselage which creates the connection between the two systems.
Difference between Evo and Performer?
Compared to the Performer, the Evo retains the ease of use but offers a faster, more playful feel, with greater acceleration and more responsive handling, while still maintaining great stability.
What size wing should I choose as my only wing for wingfoils?
For a rider around 75–85 kg who wants one kite for everything, the Evo 1450 is a great compromise because it takes off early, remains controllable in stronger winds and also works well for surfing and downwinding.
